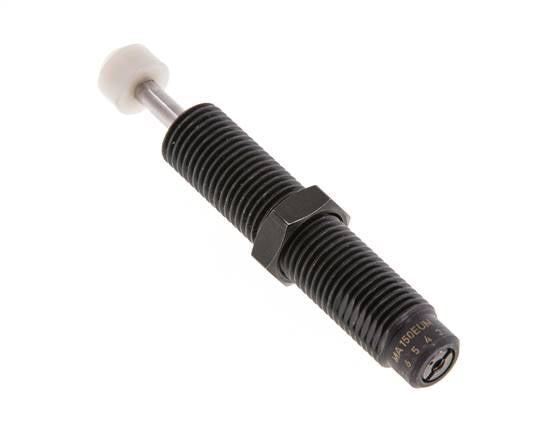

ACE Adjustable Shock Absorber M 14x1.5, 12.7 mm Stroke - MA150EUM
ACE adjustable industrial shock absorber with M 14x1,5 body thread and 12,7 mm stroke rated for up to 22 Nm per stroke, 35000 Nm/h continuous, effective mass 1 - 109 kg, operating temperature 0 to +66 °C (32 to +151 °F). Damping is tunable on-absorber to the actual mass and impact velocity. Used as an end-of-stroke buffer on machine axes, pick-and-place arms, packaging machinery, and small automation cells where the mass or impact velocity varies between cycles and the damping must be tuned.
- Precio normal
- $115.16 USD
Solo vendemos a empresas registradas
Descripción
ACE adjustable industrial shock absorber with M 14x1,5 body thread and 12,7 mm stroke rated for up to 22 Nm per stroke, 35000 Nm/h continuous, effective mass 1 - 109 kg, operating temperature 0 to +66 °C (32 to +151 °F). Damping is tunable on-absorber to the actual mass and impact velocity. Used as an end-of-stroke buffer on machine axes, pick-and-place arms, packaging machinery, and small automation cells where the mass or impact velocity varies between cycles and the damping must be tuned.
Pros:
- Tunable damping across 1–109 kg, so each cycle ends at the lowest reaction force
- Rated 22 Nm/stroke, 35000 Nm/h on a compact M 14x1,5 threaded body, 12,7 mm stroke
- Self-returning piston with integrated limit stop, no external return spring needed
Cons:
- Requires re-tuning when mass or impact velocity changes
- Operating range 0 to +66 °C (32 to +151 °F); derate or pick another series outside it
- Free-falling vertical loads need a separate energy calculation
