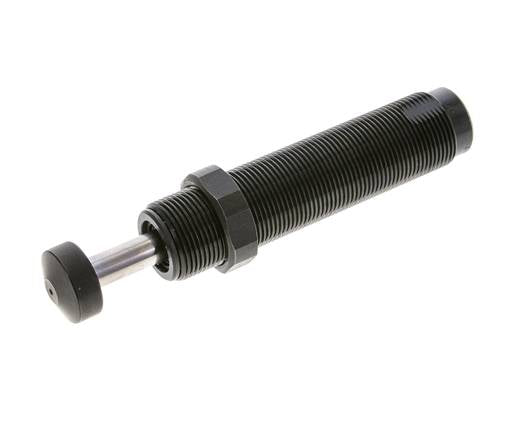

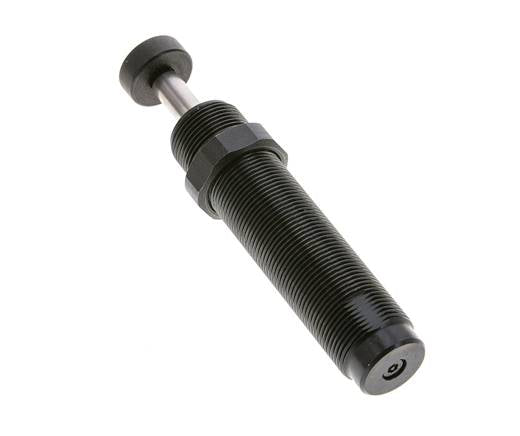

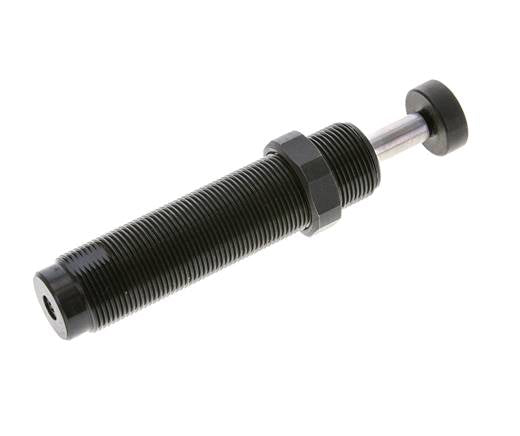

ACE Self-Adjusting Shock Absorber M 25x1.5, 23 mm Stroke - SC650EUM-7
ACE self-adjusting industrial shock absorber with M 25x1,5 body thread and 23 mm stroke rated for up to 210 Nm per stroke, 68000 Nm/h continuous, effective mass 320 - 1090 kg, operating temperature 0°C to max. +66°C (SC 45...: -12°C to max. +66°C (10 to +151 °F)). The fixed damping profile absorbs energy across the rated mass range without setup. Used as an end-of-stroke buffer on heavy machine axes, cranes, hoists, transfer systems, and conveyor end stops where high kinetic energy must be absorbed safely.
- Precio normal
- $253.82 USD
Solo vendemos a empresas registradas
Descripción
ACE self-adjusting industrial shock absorber with M 25x1,5 body thread and 23 mm stroke rated for up to 210 Nm per stroke, 68000 Nm/h continuous, effective mass 320 - 1090 kg, operating temperature 0°C to max. +66°C (SC 45...: -12°C to max. +66°C (10 to +151 °F)). The fixed damping profile absorbs energy across the rated mass range without setup. Used as an end-of-stroke buffer on heavy machine axes, cranes, hoists, transfer systems, and conveyor end stops where high kinetic energy must be absorbed safely.
Pros:
- Fixed damping profile for 320–1090 kg, no setup or tuning required
- Up to 210 Nm/stroke, 68000 Nm/h on a M 25x1,5 body, 23 mm stroke
- Sealed and maintenance-free, drop-in on standard machine axes
Cons:
- Outside 320–1090 kg the damping curve is no longer optimal
- Rated 0 to +66 °C (32 to +151 °F); check before sub-zero or hot service
- Off-axis impacts shorten life; add a side load adapter when needed
