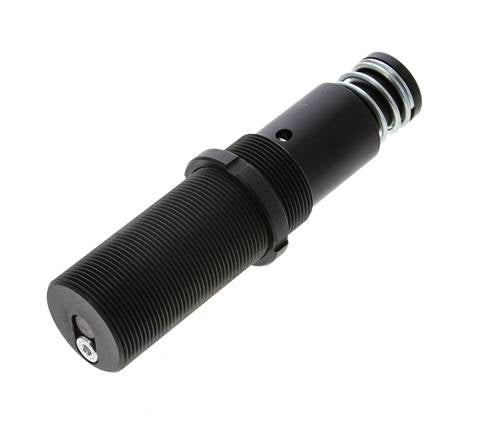

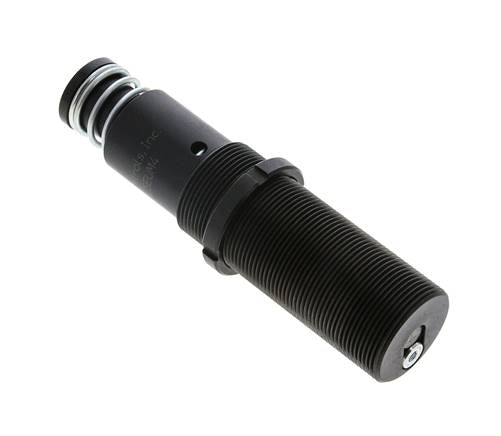

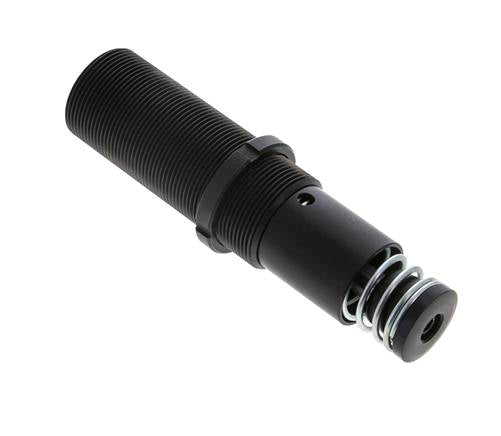

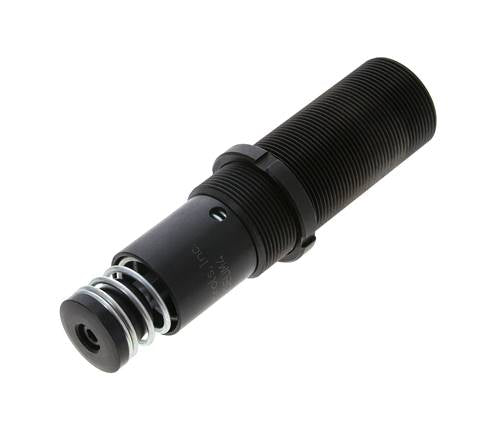

ACE Self-Adjusting Shock Absorber M 33x1.5, 25 mm Stroke - MC3325EUM-4
ACE self-adjusting industrial shock absorber with M 33x1,5 body thread and 25 mm stroke rated for up to 170 Nm per stroke, 75000 Nm/h continuous, effective mass 350 - 1420 kg, operating temperature -12°C to max. +66°C (10 to +151 °F). The fixed damping profile absorbs energy across the rated mass range without setup. Used as an end-of-stroke buffer on heavy machine axes, cranes, hoists, transfer systems, and conveyor end stops where high kinetic energy must be absorbed safely.
- Precio normal
- $318.64 USD
Solo vendemos a empresas registradas
Descripción
ACE self-adjusting industrial shock absorber with M 33x1,5 body thread and 25 mm stroke rated for up to 170 Nm per stroke, 75000 Nm/h continuous, effective mass 350 - 1420 kg, operating temperature -12°C to max. +66°C (10 to +151 °F). The fixed damping profile absorbs energy across the rated mass range without setup. Used as an end-of-stroke buffer on heavy machine axes, cranes, hoists, transfer systems, and conveyor end stops where high kinetic energy must be absorbed safely.
Pros:
- Fixed damping profile for 350–1420 kg, no setup or tuning required
- Up to 170 Nm/stroke, 75000 Nm/h on a M 33x1,5 body, 25 mm stroke
- Sealed and maintenance-free, drop-in on standard machine axes
Cons:
- Outside 350–1420 kg the damping curve is no longer optimal
- Rated -12 to +66 °C (10 to +151 °F); check before sub-zero or hot service
- Off-axis impacts shorten life; add a side load adapter when needed
