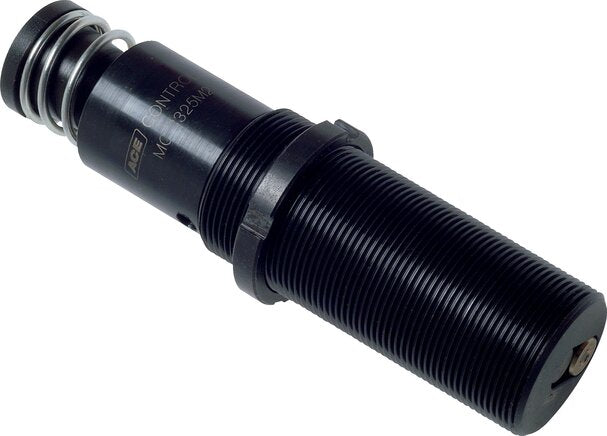

ACE Self-Adjusting Shock Absorber M 45x1.5, 75 mm Stroke - MC4575EUM-3-HT
ACE self-adjusting industrial shock absorber with M 45x1,5 body thread and 75 mm stroke rated for up to 1130 Nm per stroke, 146000 Nm/h continuous, effective mass 790 - 3140 kg, operating temperature -12°C to max. +66°C (10 to +151 °F). The fixed damping profile absorbs energy across the rated mass range without setup. Used as an end-of-stroke buffer on heavy machine axes, cranes, hoists, transfer systems, and conveyor end stops where high kinetic energy must be absorbed safely.
- Precio normal
- $771.74 USD
Solo vendemos a empresas registradas
Descripción
ACE self-adjusting industrial shock absorber with M 45x1,5 body thread and 75 mm stroke rated for up to 1130 Nm per stroke, 146000 Nm/h continuous, effective mass 790 - 3140 kg, operating temperature -12°C to max. +66°C (10 to +151 °F). The fixed damping profile absorbs energy across the rated mass range without setup. Used as an end-of-stroke buffer on heavy machine axes, cranes, hoists, transfer systems, and conveyor end stops where high kinetic energy must be absorbed safely.
Pros:
- Fixed damping profile for 790–3140 kg, no setup or tuning required
- Up to 1130 Nm/stroke, 146000 Nm/h on a M 45x1,5 body, 75 mm stroke
- Sealed and maintenance-free, drop-in on standard machine axes
Cons:
- Outside 790–3140 kg the damping curve is no longer optimal
- Rated -12 to +66 °C (10 to +151 °F); check before sub-zero or hot service
- Off-axis impacts shorten life; add a side load adapter when needed
