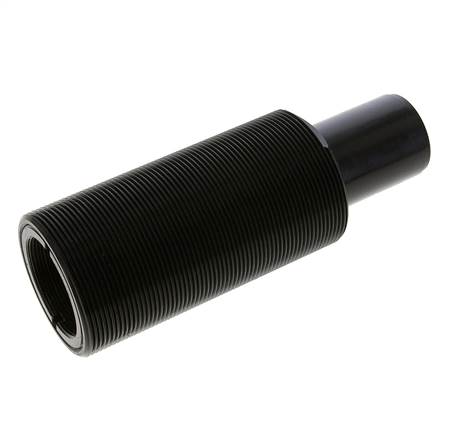

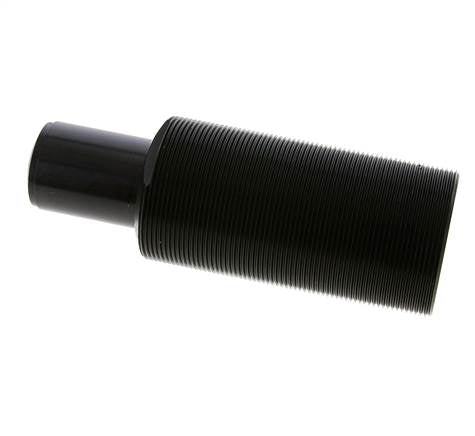

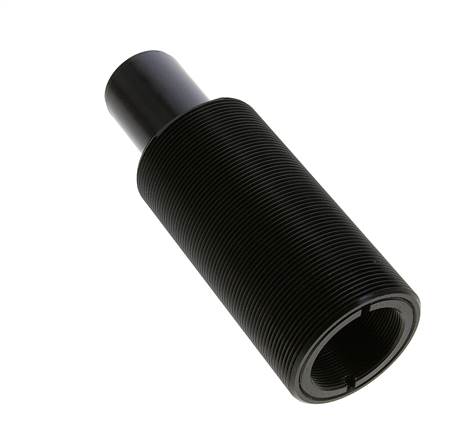

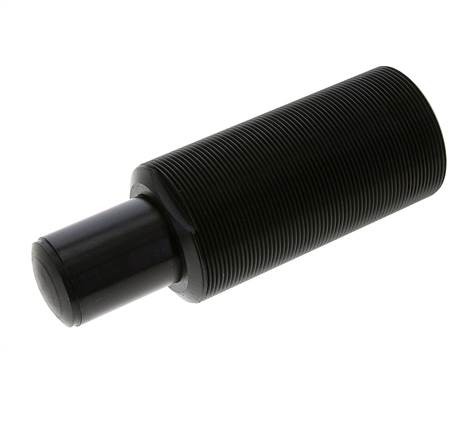

ACE Side Load Adapter M 45x1.5 for MA 4550..., MC 4550..., SC 4550... Shock Absorber - BV4550
Referencia:
P49V2
Marca:
ACE
Núm. Parte Fab.:
BV4550
ACE side load adapter with M 45x1,5 thread, compatible with ACE shock absorbers MA 4550..., MC 4550..., SC 4550.... Fits onto the piston rod end and transfers lateral forces into the housing so the rod itself sees only axial load. Used on swinging arms, indexing tables, and linear systems where the impacting mass cannot strike the absorber on-axis.
- Precio normal
- $192.86 USD
sin IVA
Envío a Estados Unidos: Gratis
Envío a Estados Unidos: $14.95 USD
Gratis para pedidos > $390.00 USD (sin IVA)
Solo vendemos a empresas registradas
Descripción
Especificaciones
Descripción
ACE side load adapter with M 45x1,5 thread, compatible with ACE shock absorbers MA 4550..., MC 4550..., SC 4550.... Fits onto the piston rod end and transfers lateral forces into the housing so the rod itself sees only axial load. Used on swinging arms, indexing tables, and linear systems where the impacting mass cannot strike the absorber on-axis.
Pros:
- Removes lateral load from the M 45x1,5 piston rod, extending absorber life
- Self-aligning head accommodates off-axis impacts on MA 4550..., MC 4550..., SC 4550...
- Mandatory wherever the moving mass cannot strike the absorber on-axis
Cons:
- Not combinable with an impact head; choose one accessory
- Adds installation length and changes the absorber's effective reach
- Finite swing-angle; outside that range a different adapter is needed
