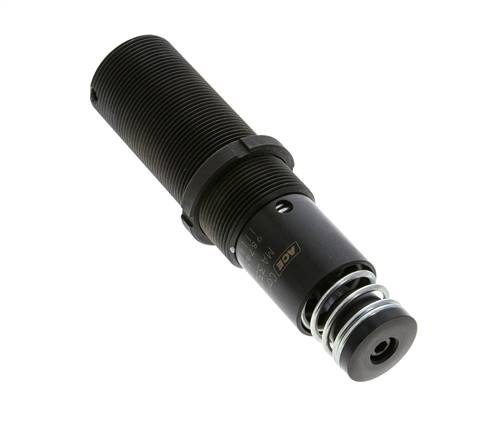

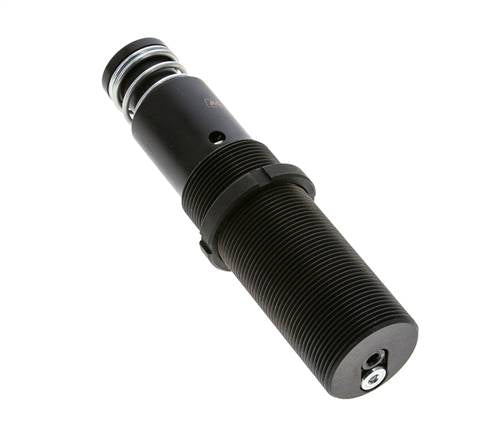

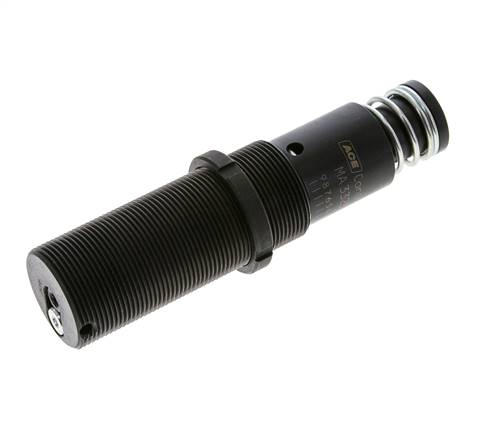

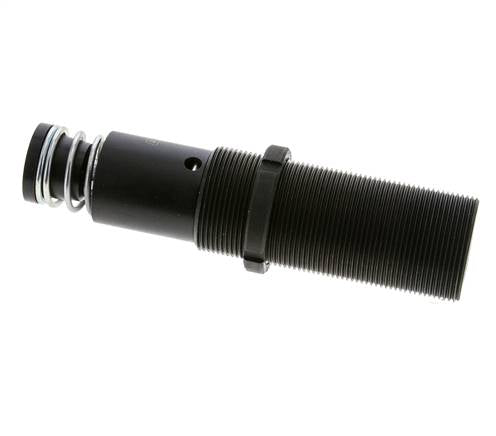

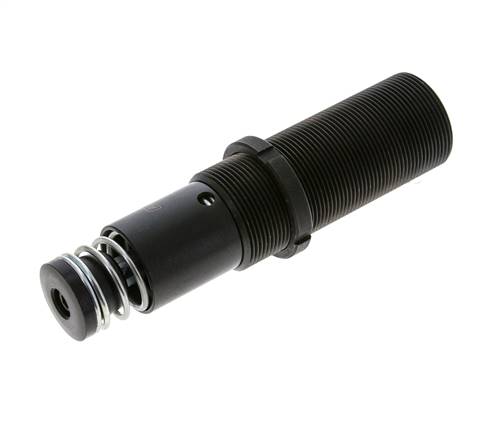

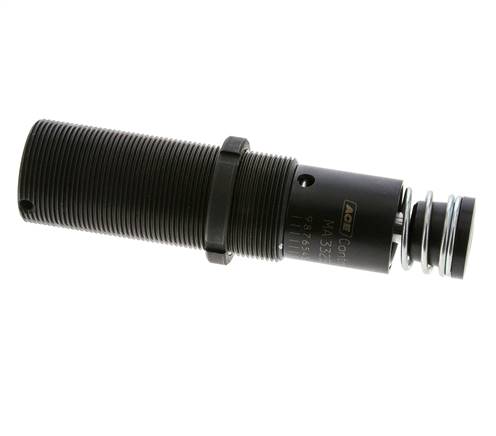

ACE Standard Adjustable Shock Absorber M 33x1.5, 25 mm Stroke - MA3325EUM
ACE standard adjustable industrial shock absorber with M 33x1,5 body thread and 25 mm stroke rated for up to 170 Nm per stroke, 75000 Nm/h continuous, effective mass 9 - 1700 kg, operating temperature -12°C to max. +66°C (10 to +151 °F). Damping is tunable on-absorber to the actual mass and impact velocity. Used as an end-of-stroke buffer on heavy machine axes, cranes, hoists, transfer systems, and conveyor end stops where high kinetic energy must be absorbed safely.
- Precio normal
- $324.28 USD
Solo vendemos a empresas registradas
Descripción
ACE standard adjustable industrial shock absorber with M 33x1,5 body thread and 25 mm stroke rated for up to 170 Nm per stroke, 75000 Nm/h continuous, effective mass 9 - 1700 kg, operating temperature -12°C to max. +66°C (10 to +151 °F). Damping is tunable on-absorber to the actual mass and impact velocity. Used as an end-of-stroke buffer on heavy machine axes, cranes, hoists, transfer systems, and conveyor end stops where high kinetic energy must be absorbed safely.
Pros:
- High-energy 170 Nm/stroke, 75000 Nm/h for crane, hoist, and heavy conveyor end-stop duty
- Tunable across 9–1700 kg on a M 33x1,5 body, 25 mm stroke
- Hard-chromed piston rod and bronzed steel body for industrial environments
Cons:
- Operating range -12 to +66 °C (10 to +151 °F); physically large body needs a stiff frame and clear axial install space
- Re-tune required when masses or velocities change
- Higher cost than a fixed-profile self-adjusting unit at equivalent ratings
