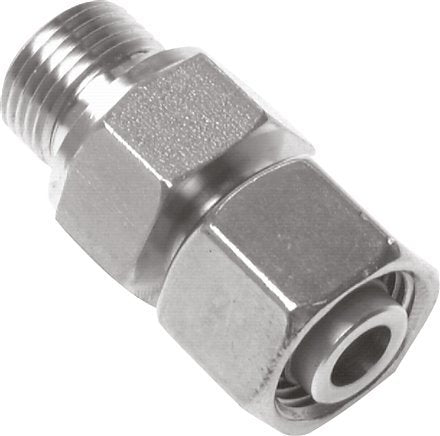

Conector Giratorio Recto de Acero Inoxidable 20S & M27x2 Rosca Macho 400 bar Junta FKM Ajustable ISO 8434-1
Aviso: Este producto será descontinuado en el futuro
La imagen puede variar ligeramente
Consulte las especificaciones para obtener información precisa.
Referencia:
F2ADS
Marca:
Tameson
This stainless steel 1.4571 straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable
Aviso: Este producto será descontinuado en el futuro
Descripción
Especificaciones
Descargas
Descripción
This stainless steel 1.4571 straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 20 mm swivel tube connection. Connection 2 has male M 27x2 threads. The seal material is FKM. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
