Flow transmitter, Low Power, wall mount - Bürkert 8025 - 418399
Insertion paddle-wheel flow meter with display for neutral and mildly aggressive, particle-free liquids. Measures and totalises flow and can control dosing, with a 4-20 mA output for process integration. An insertion meter reaches a probe into the pipe through a single port, so one compact unit fits a wide range of pipe sizes without a full-bore meter body. It installs through a tee or weld-in fitting (such as the Bürkert S020), ordered to match your line.
- Precio normal
- $1,359.99 USD
Solo vendemos a empresas registradas
Descripción

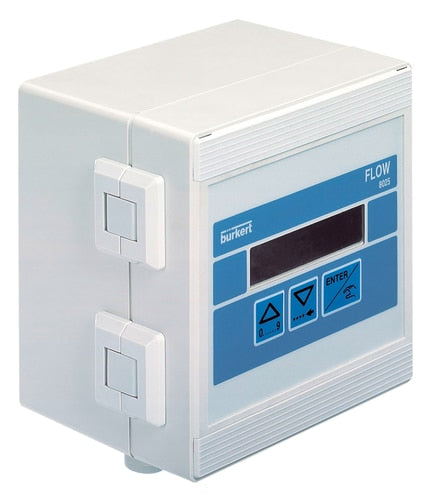

The Bürkert 8025 Low Power flow transmitter is the electronics and display unit of a remote flow meter, for installations that run on limited power. It has no sensor and does not measure on its own: it reads the pulse signal from a separate Bürkert Low-Power flow sensor and turns it into a flow reading, a 4-20 mA output, and a local display. "Remote" means the electronics are mounted away from the sensor and wired by cable, not wirelessly. This version mounts on a wall near the line.
A working meter is three parts: this transmitter, a flow sensor, and the sensor's own fitting. The Low Power version works only with the Bürkert Low-Power sensor variants (8020, 8030, and SE30 with S077). The fitting depends on the sensor chosen.
Pro
- Suited to installations with a limited power supply
- 4-20 mA output and local display
- Mounts away from the pipe, in a panel or on a wall
Con
- No sensor: a separate Low-Power flow sensor and its fitting are ordered separately
- Works only with Bürkert Low-Power sensors
