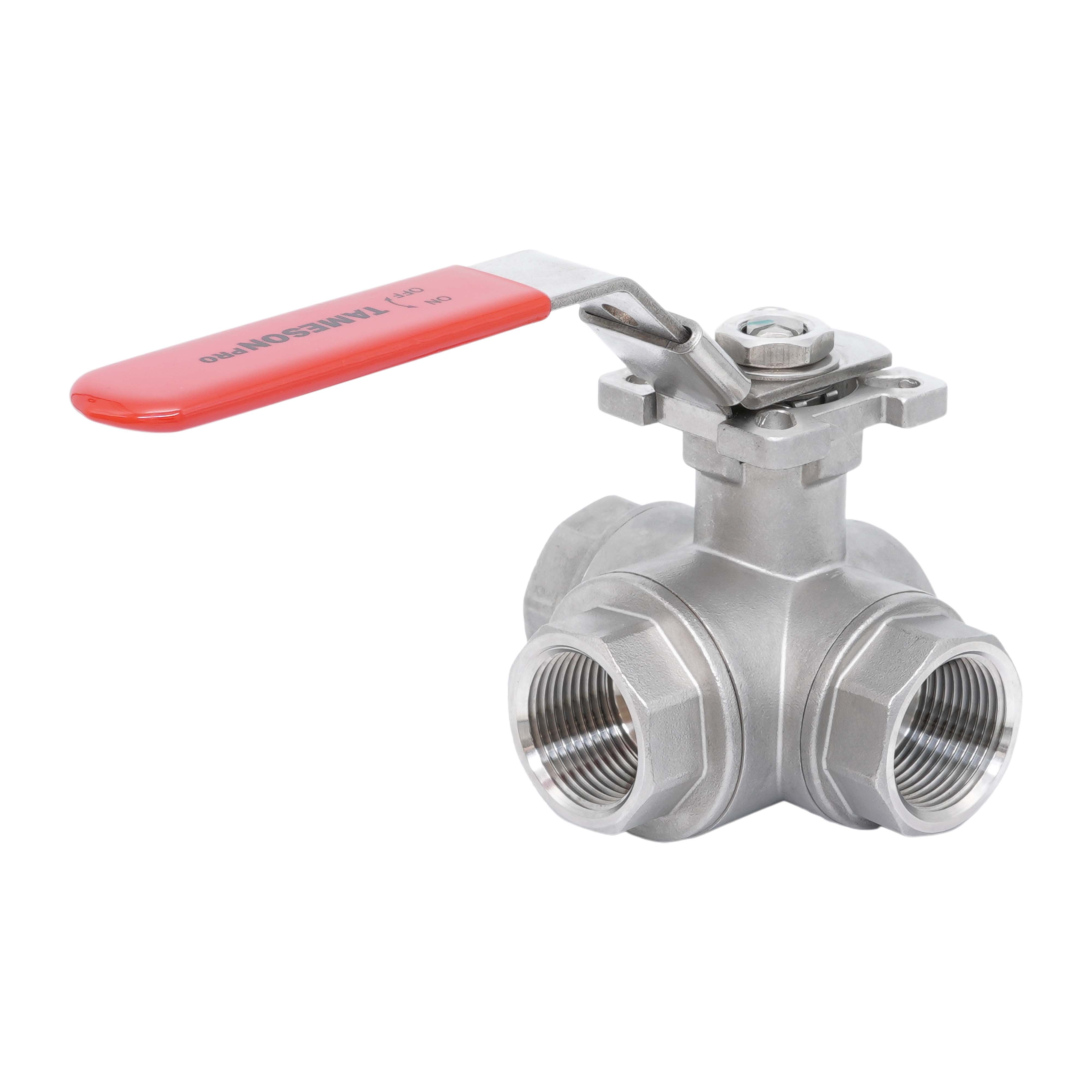

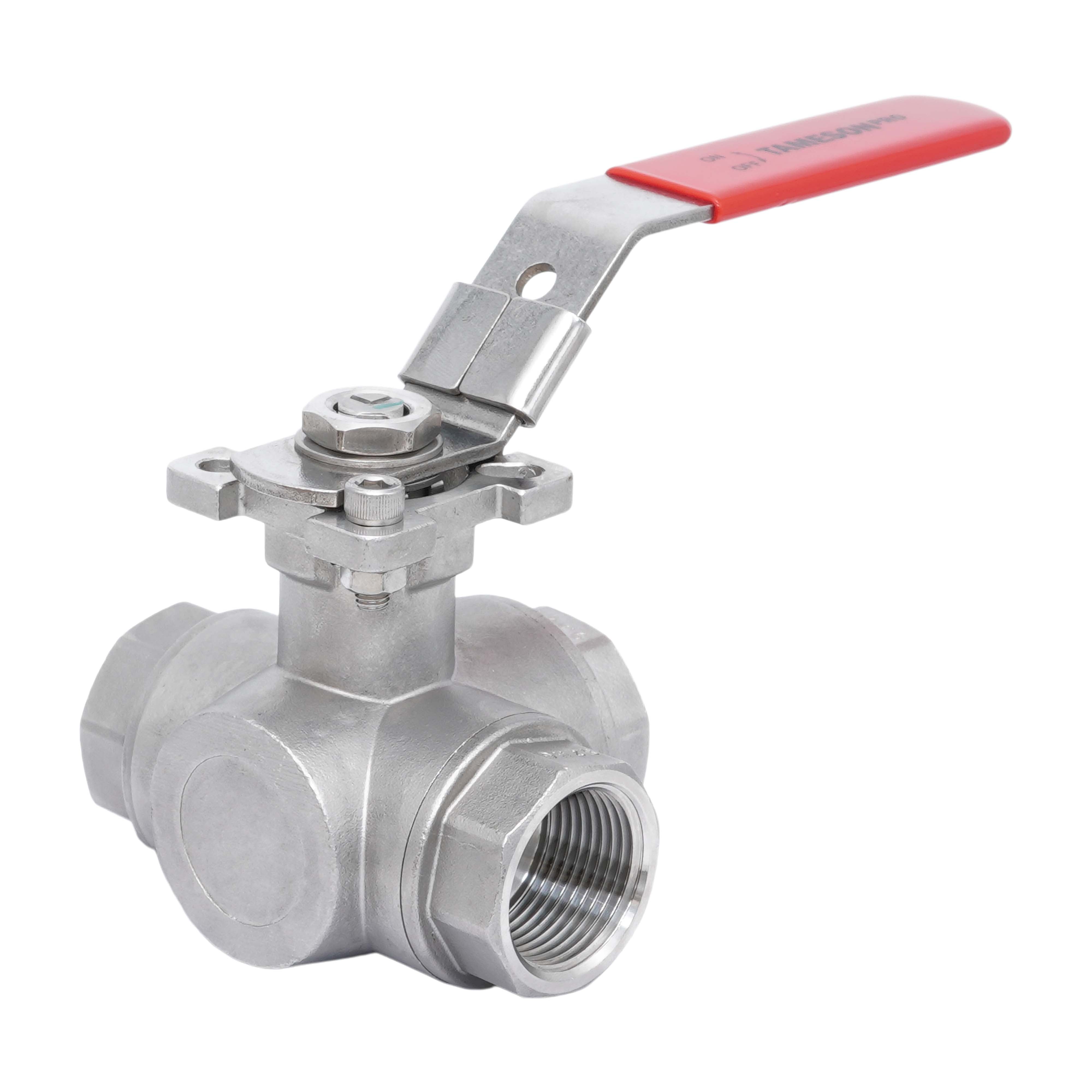

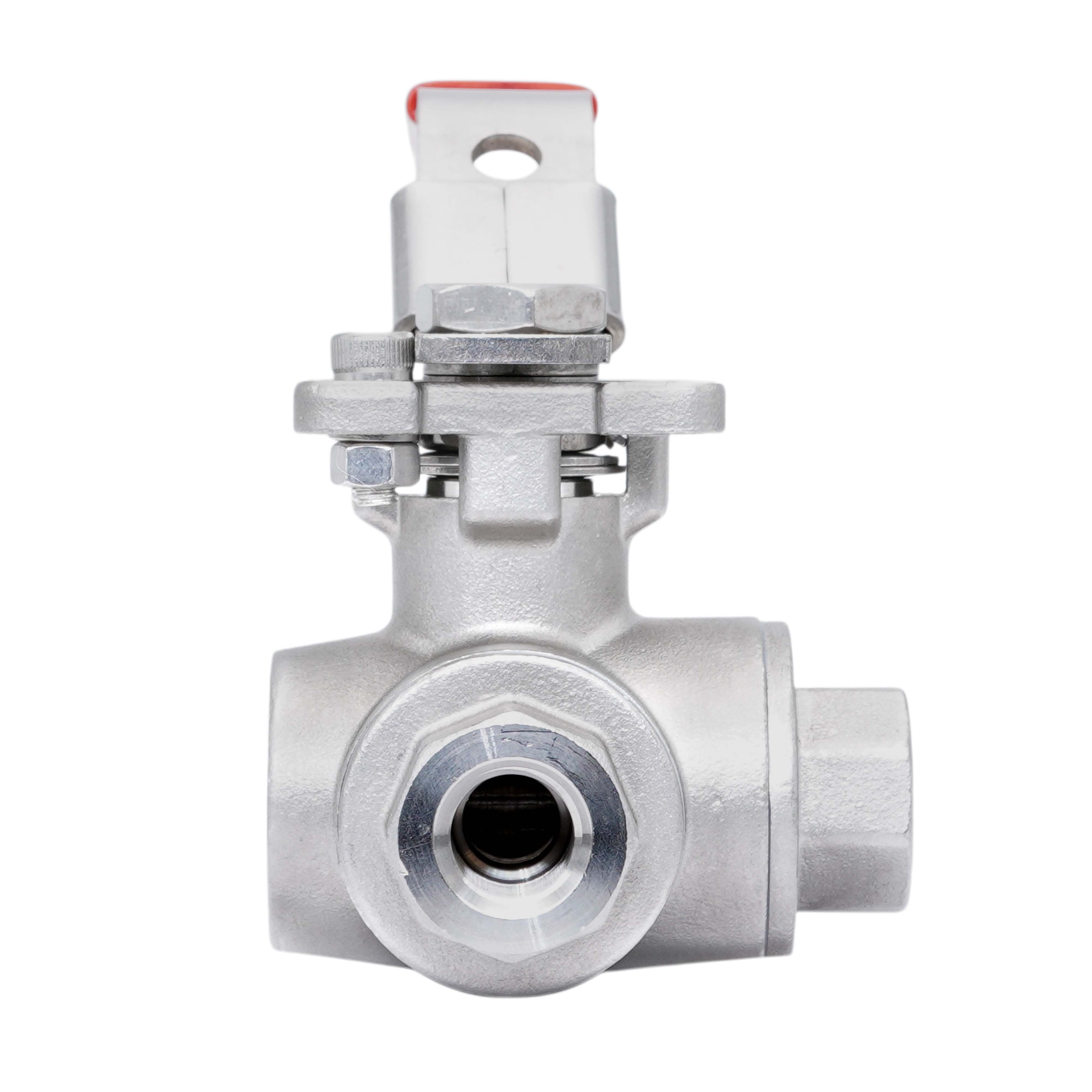

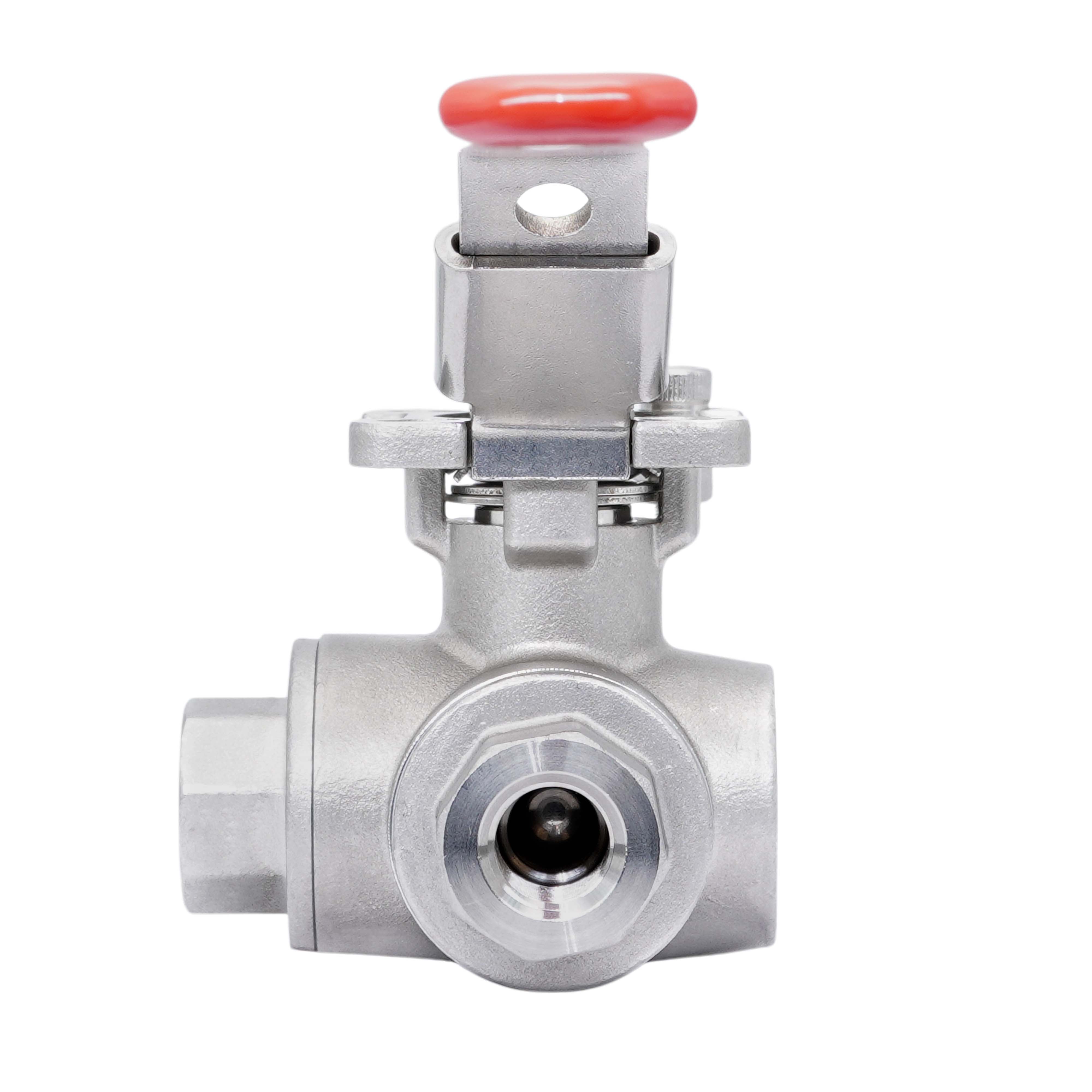

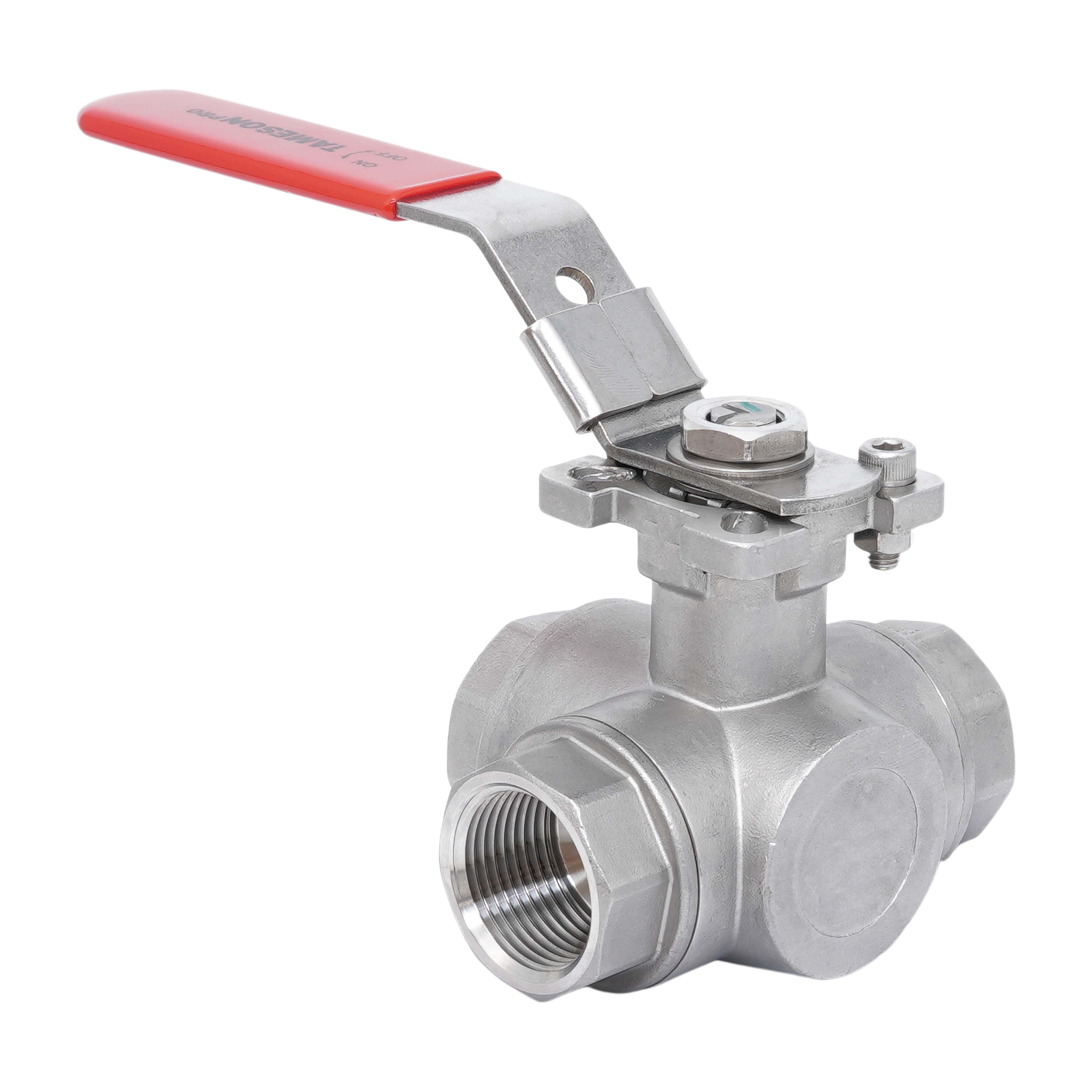

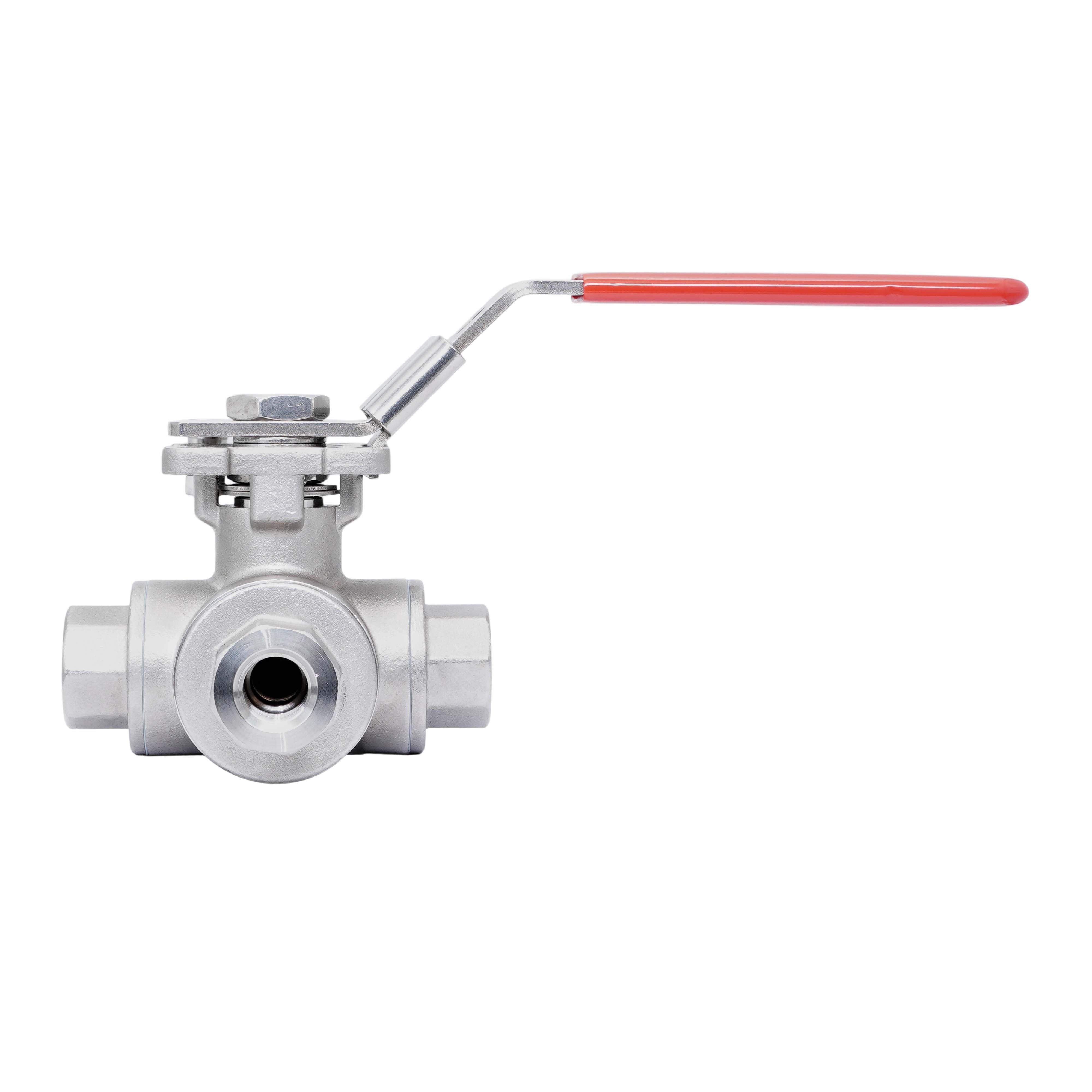

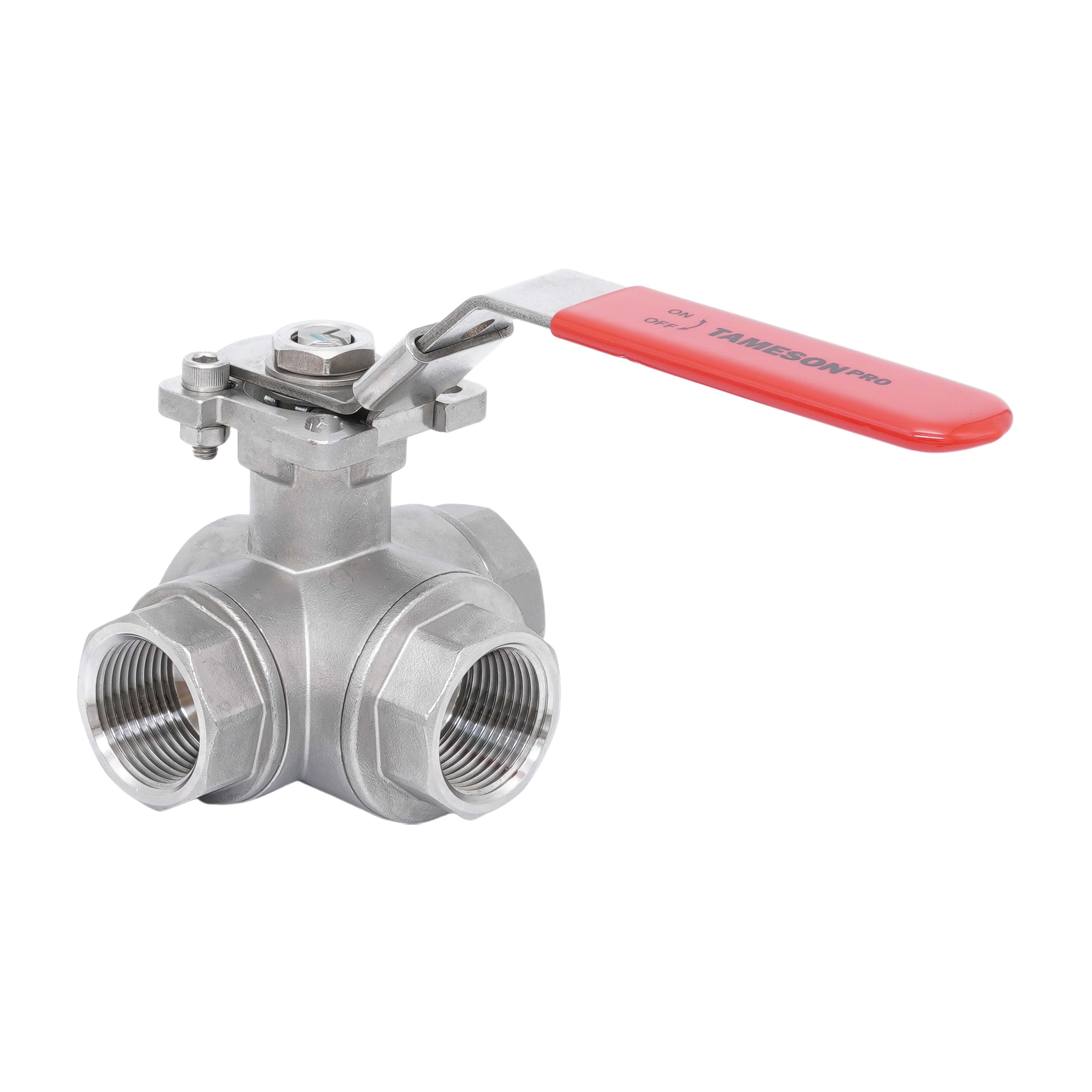

Rp 1-1/2'' 3-Way T-Port Stainless Steel Ball Valve 69 bar RTFE ISO-Top F07 - TamesonPRO 1125-112-T

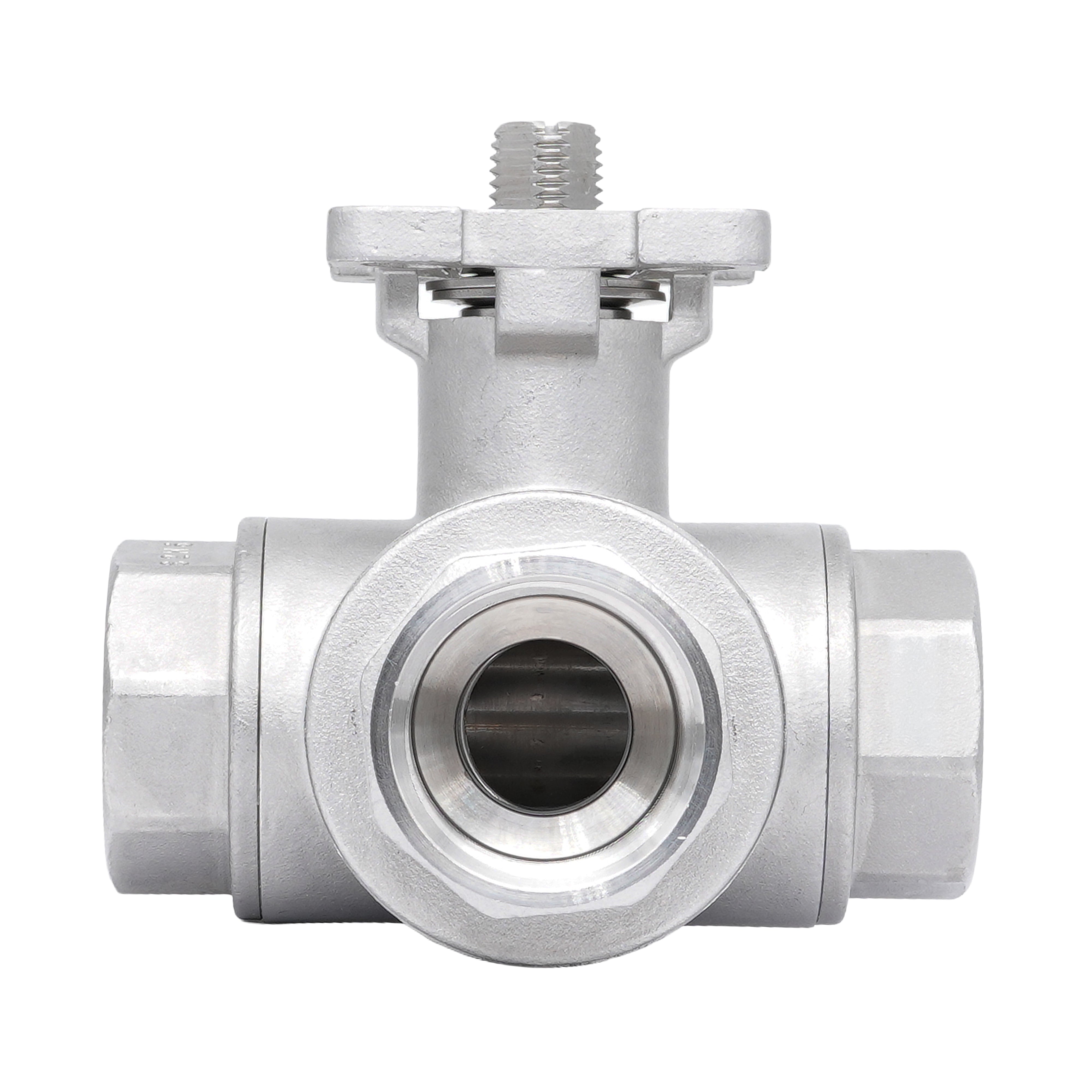

This 3-way T-port ball valve in 316 stainless steel (1.4408) has Rp 1 1/2 BSPT female ports and a 32 mm bore. The body and ball are 316 stainless steel (1.4408/CF8M) with RTFE seals, suitable for water, steam, oil, compressed air, fuels, solvents, and aggressive media up to 69 bar at 20°C (1000 psi at 68°F). With our wide range of Rp 1 1/2 fittings you can connect it to any piping system.

The valve can be used within a temperature range from -29°C to 210°C (-20°F to 410°F). The valve has a Kv value of 74.9 m³/h at a differential pressure of 1 bar (Cv = 86.6 gpm). Use the quarter turn handle to operate the valve. A 90-degree rotation switches the ball position and redirects the flow. The handle is made of 1.4301 stainless steel. The valve is suitable for electrical and pneumatic control (ISO 5211 flange F07).

Pros:

• Suitable for aggressive media due to the 316 stainless steel (1.4408/CF8M) housing and ball
• Max pressure of up to 69 bar at 20°C (1000 psi at 68°F)
• Wide operating temperature range -29°C to 210°C (-20°F to 410°F)
• Lockable handle prevents unauthorized tampering or accidental operation

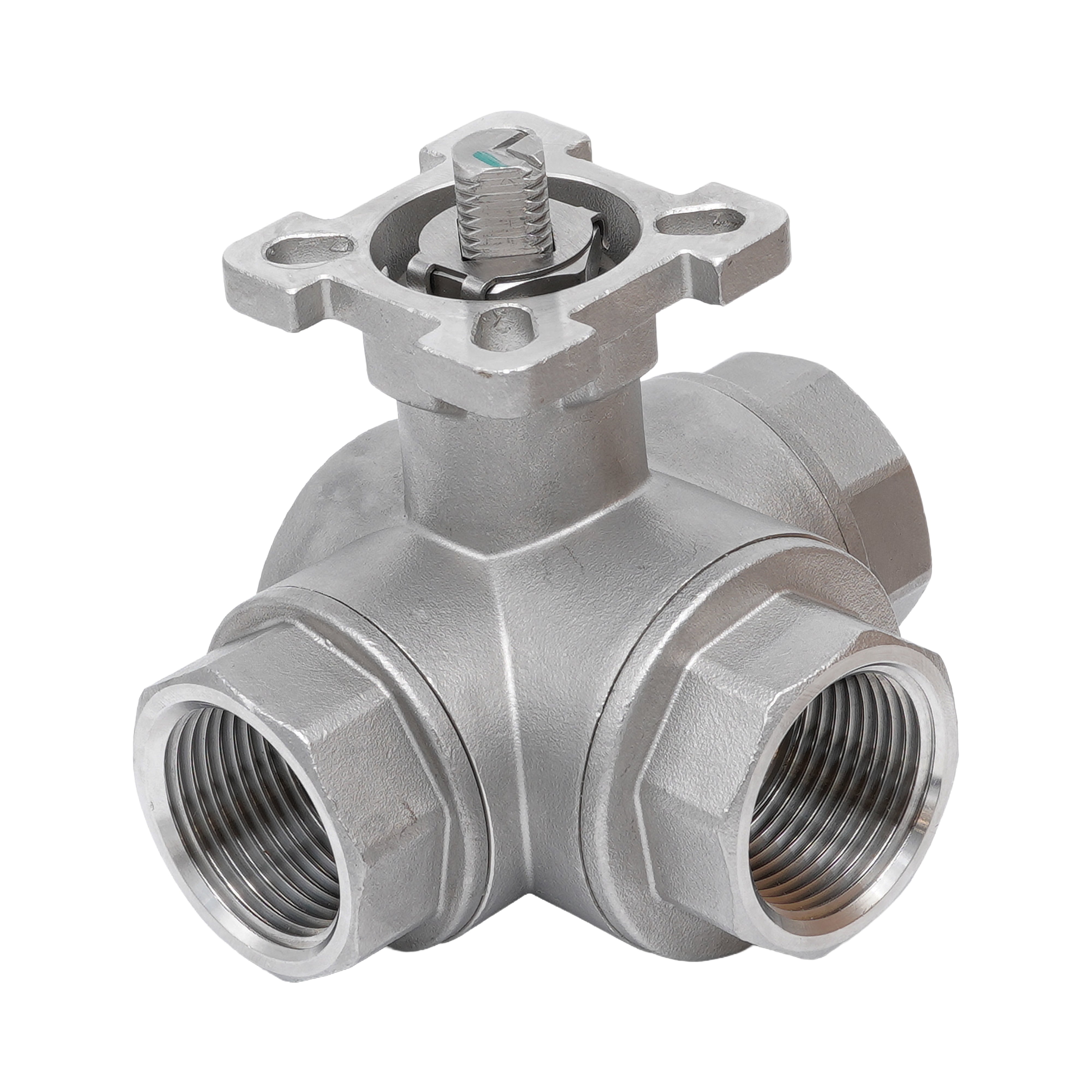

• Suitable for electrical or pneumatic actuation thanks to the ISO-top flange F07

Bore and circuit function

The ball has a T-port. Rotating the ball 90 degrees allows you to switch between two circuits or connect all three pipes.

Schematic drawing of the circuit function of T-port valves

Dimensions

d=32mm, L=125.8mm, L1=62.7mm, H=119.75mm, H1=14.2mm, H2=7825mm, W=200.5mm, S=14mm, P=20.8mm
