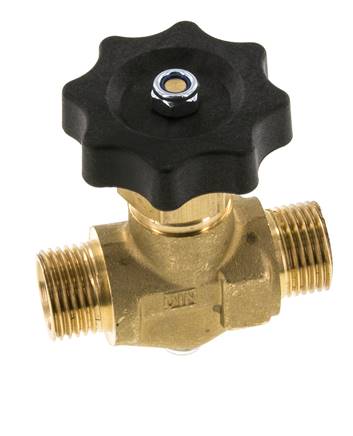

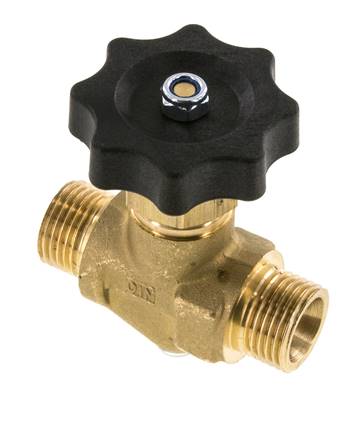

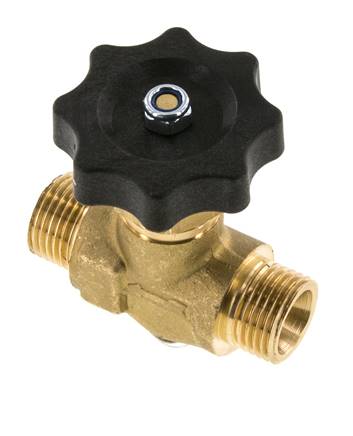

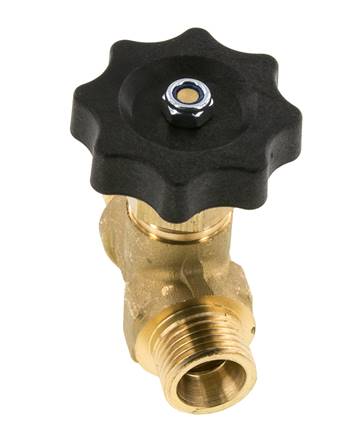

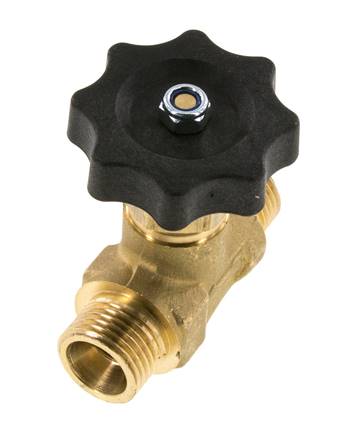

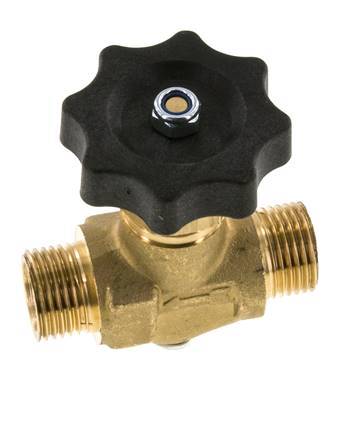

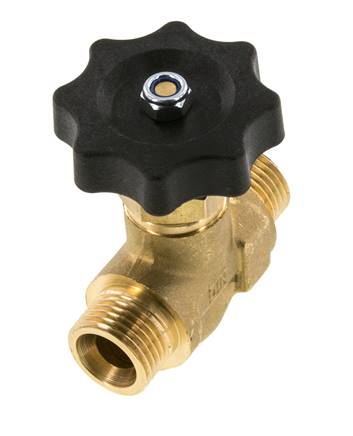

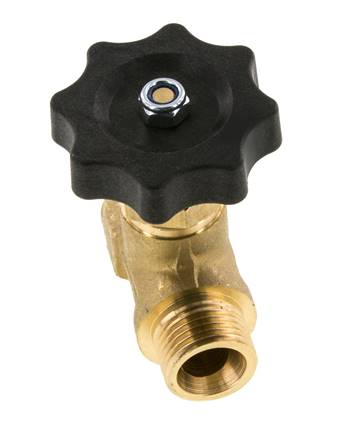

G 1/2'' Male Threaded Brass Ball Valve 40 bar with Handwheel
Referencia:
V3KXX
Marca:
Tameson
G 1/2" BSP male 2-way brass ball valve, straight body. Brass ball seal and NBR stem seal - suitable for water, compressed air, oils, fuels, alcohols, and lubricants. Rated to 40 bar at 20 °C, temperature range -30 to 110 °C (-22 to 230 °F).
- Precio normal
- $27.19 USD
sin IVA
Envío a Estados Unidos: Gratis
Envío a Estados Unidos: $14.95 USD
Gratis para pedidos > $390.00 USD (sin IVA)
Solo vendemos a empresas registradas
Descripción
Especificaciones
Descargas
Productos relacionados
Descripción
This G 1/2" BSP male brass ball valve controls on/off flow with a single quarter-turn of the handwheel. The straight body mounts directly in-line - no additional fittings needed. The brass ball seals against a brass seat. This metal-to-metal contact creates a reliable, tight shutoff across the full operating range. The NBR stem seal is compatible with water, compressed air, oils, fuels, alcohols, and lubricants. Avoid use with strong acids, ammonia, seawater, or other media aggressive to brass or NBR. Rated to 40 bar at 20 °C, temperature range -30 to 110 °C (-22 to 230 °F). The pressure rating decreases at elevated temperatures.
Pros:
- Quarter-turn handwheel for fast open/close.
- Metal-to-metal brass ball seal - tight shutoff without soft seal degradation at the sealing surface.
- Compatible with water, compressed air, oils, fuels, alcohols, and lubricants.
Cons:
- Brass body not suitable for strong acids, ammonia, or seawater.
- NBR stem seal not compatible with aggressive chemicals - always verify media compatibility before use.
