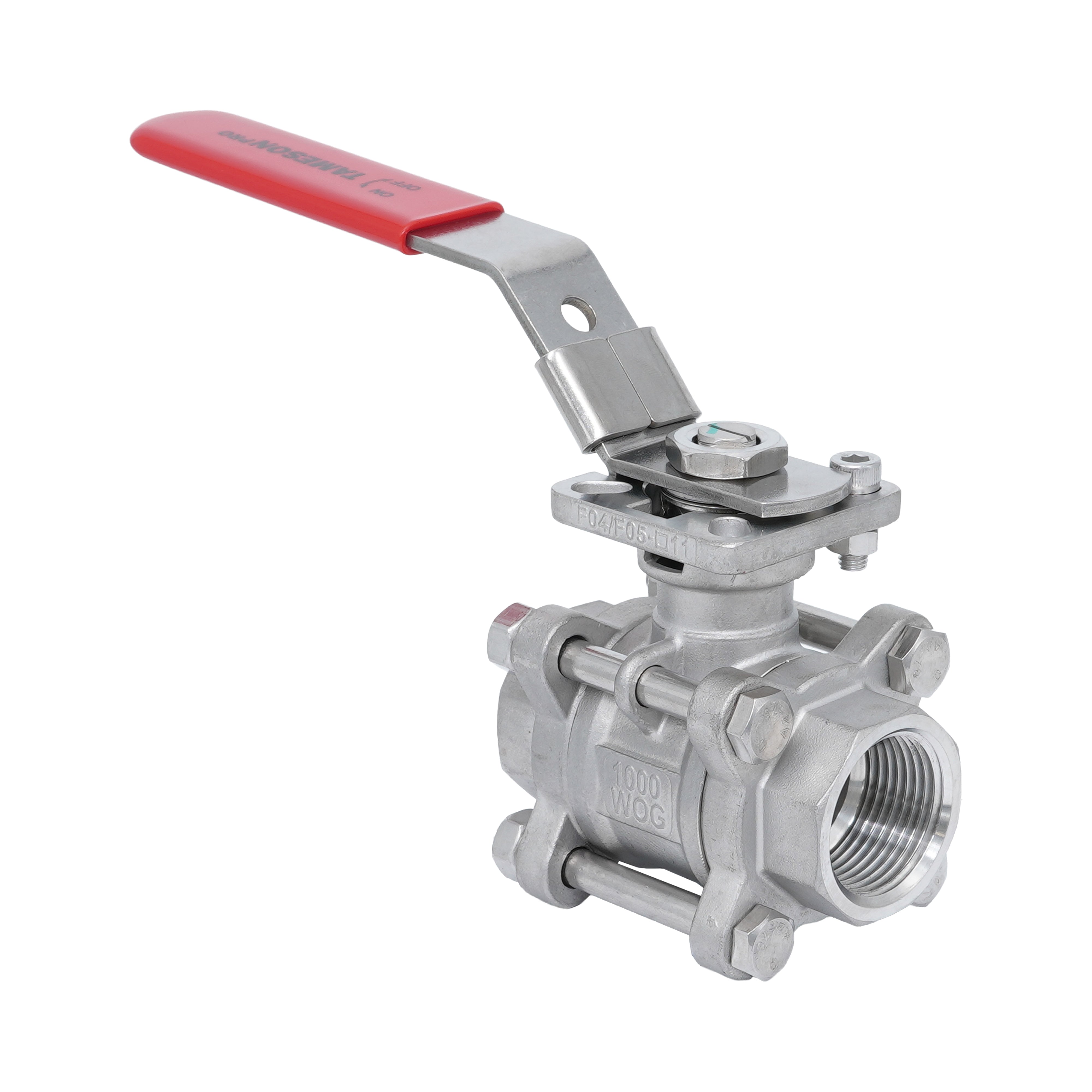

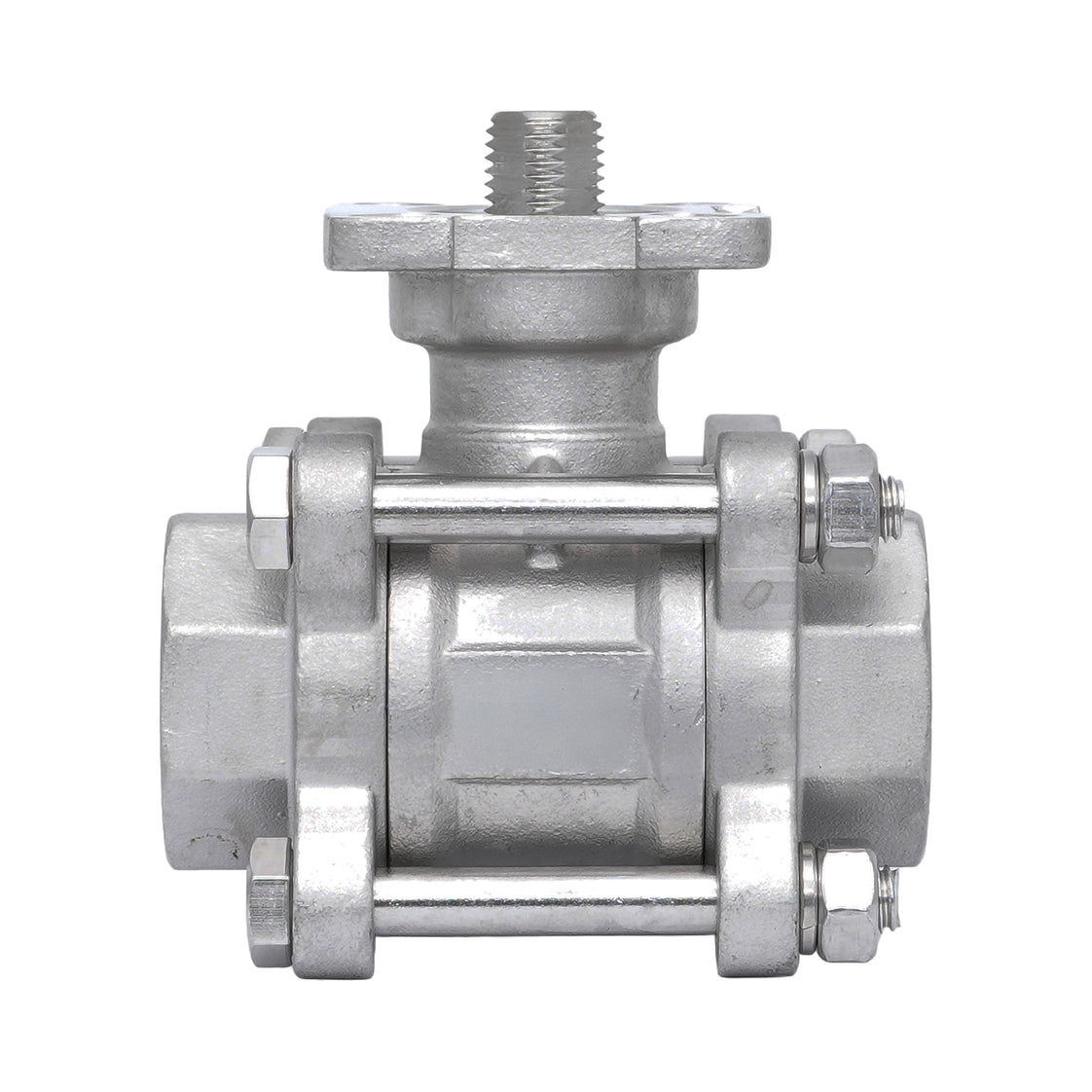

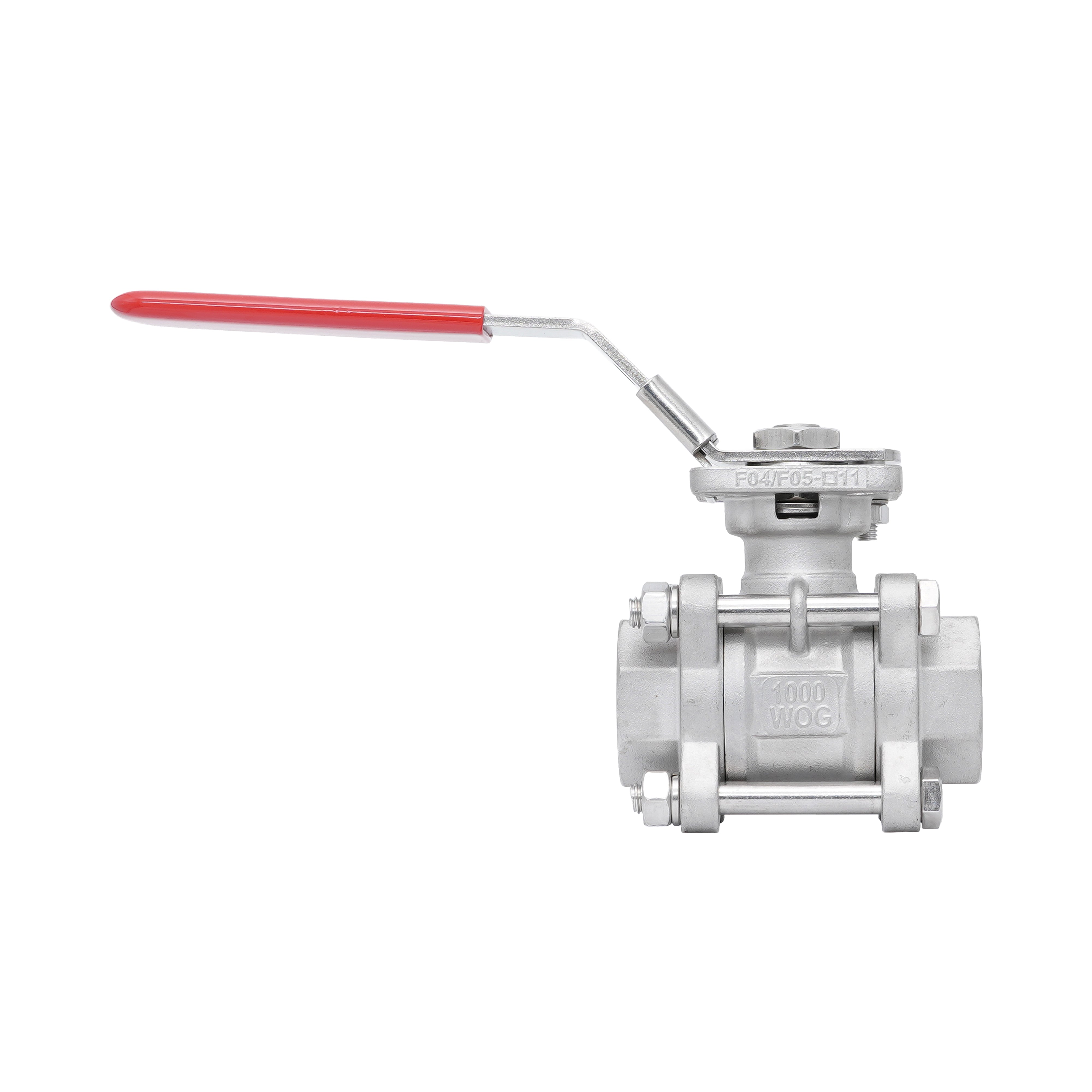

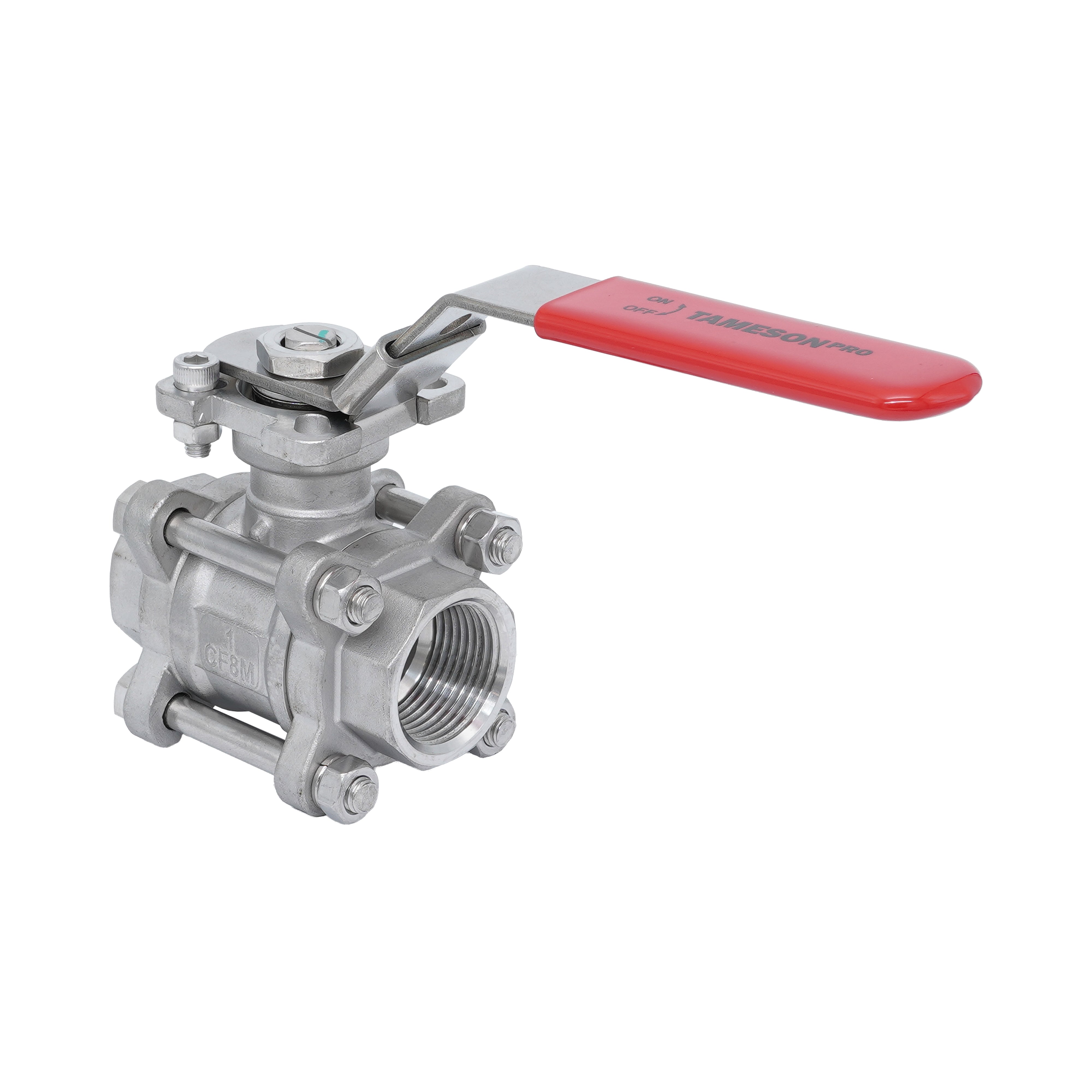

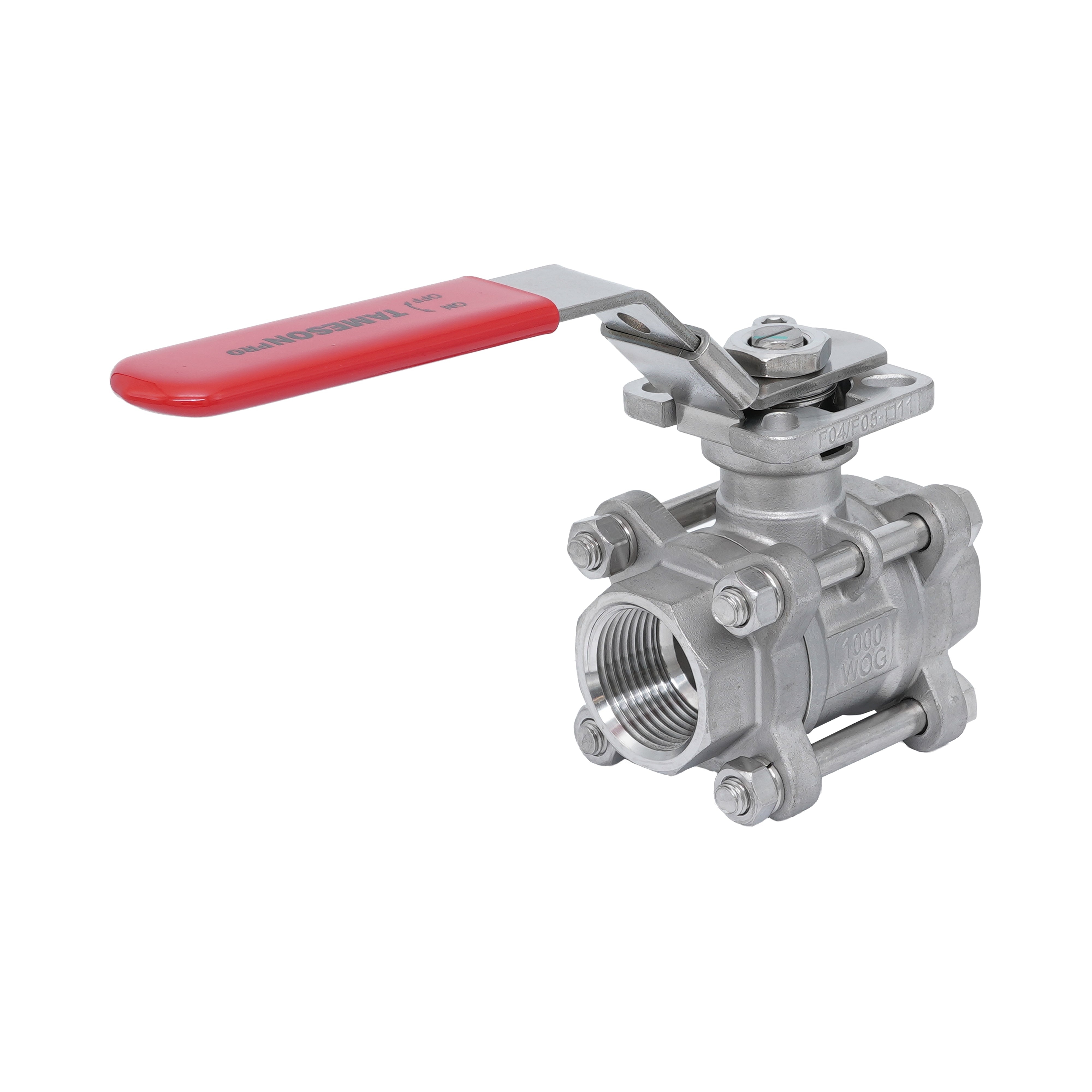

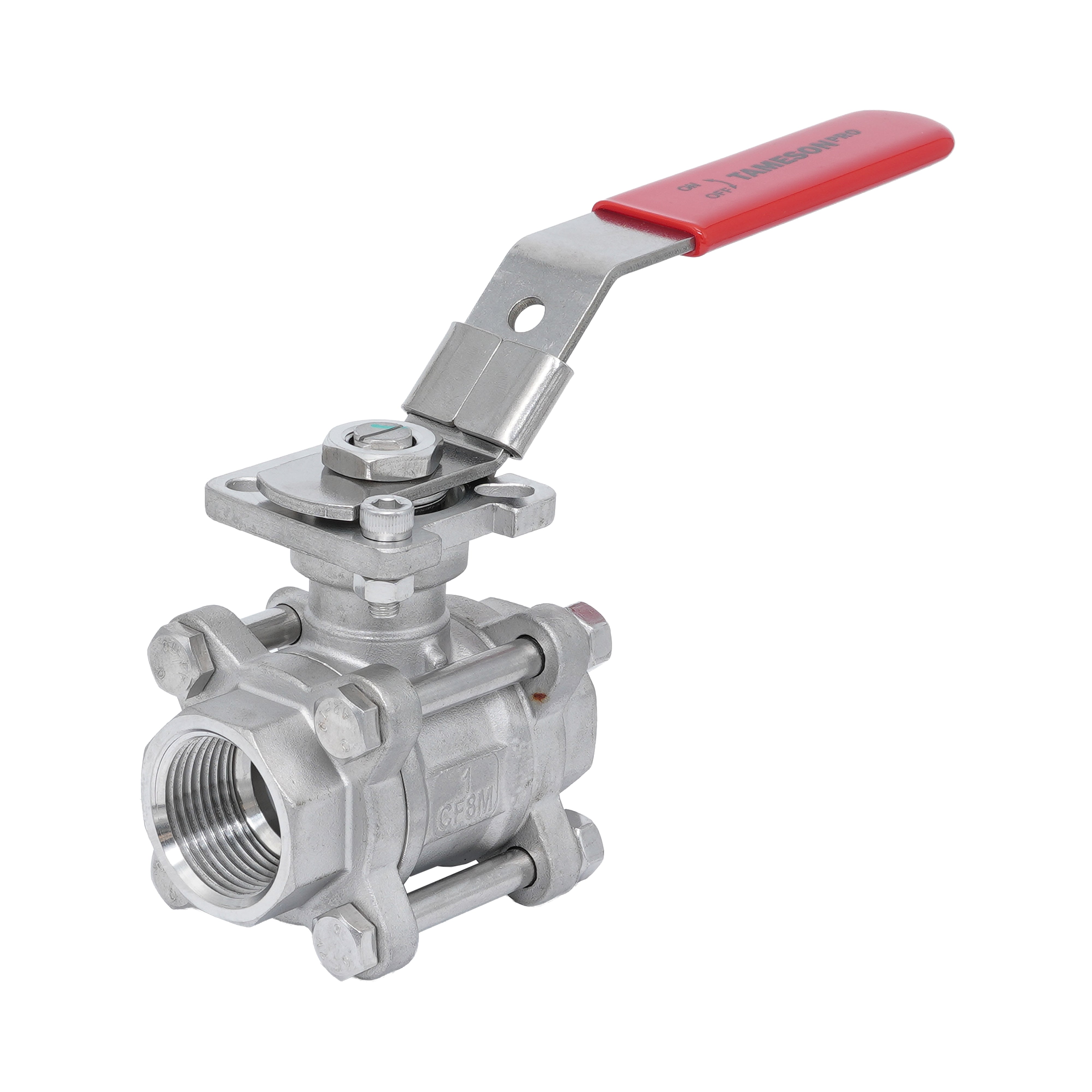

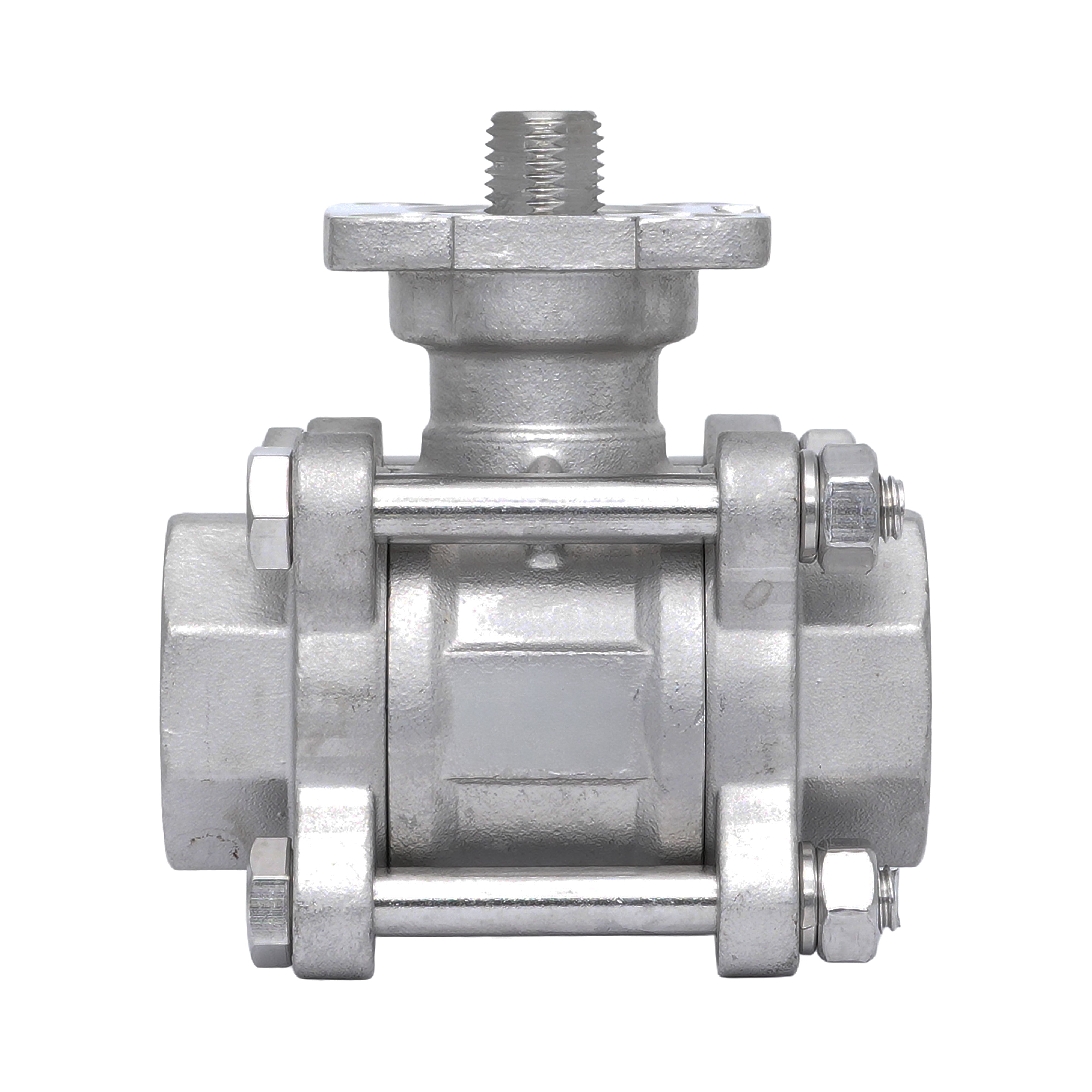

Rp 2-1/2'' 3-Piece 2-Way Stainless Steel Ball Valve 69 bar RTFE ISO-Top F07/F10 - TamesonPRO 1121-212

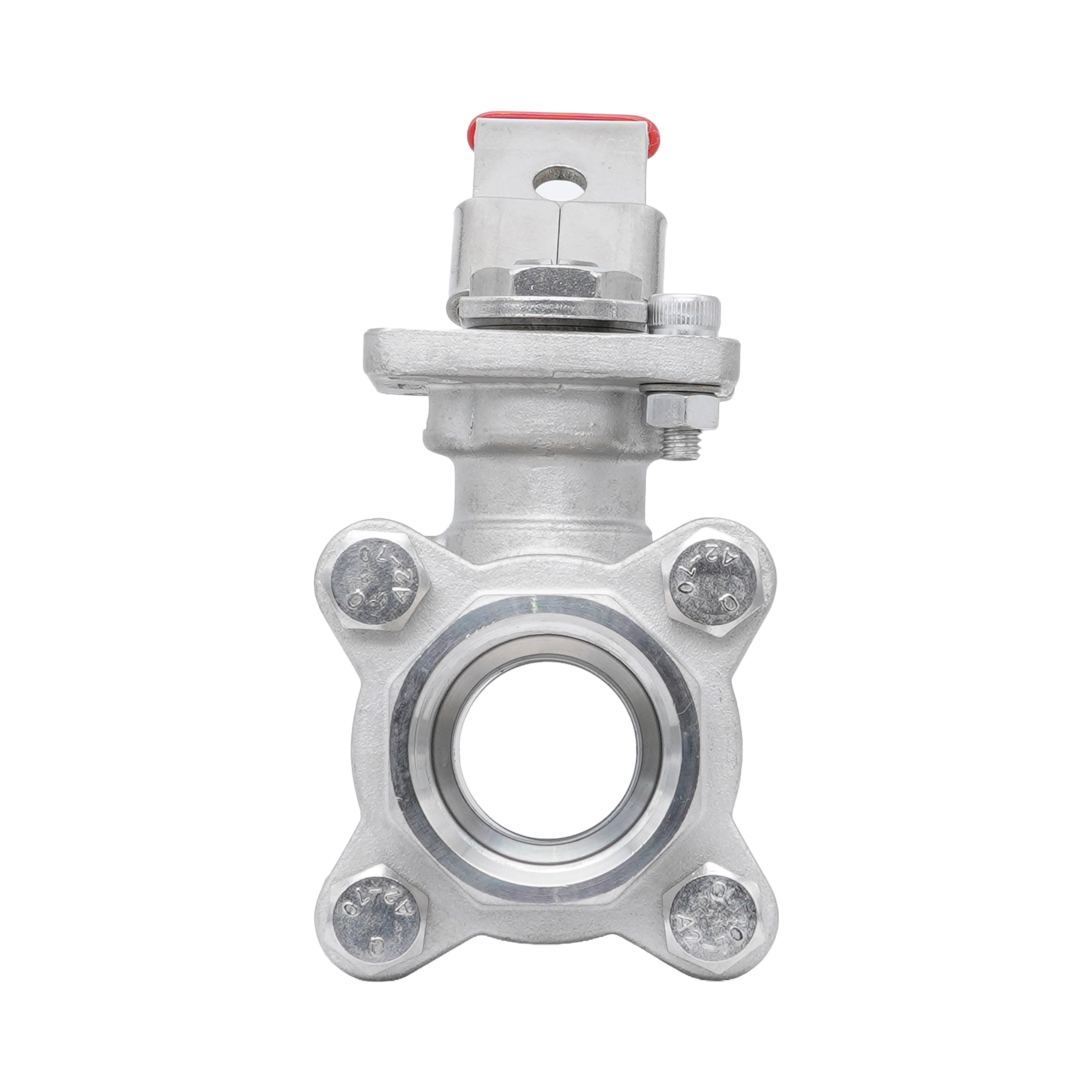

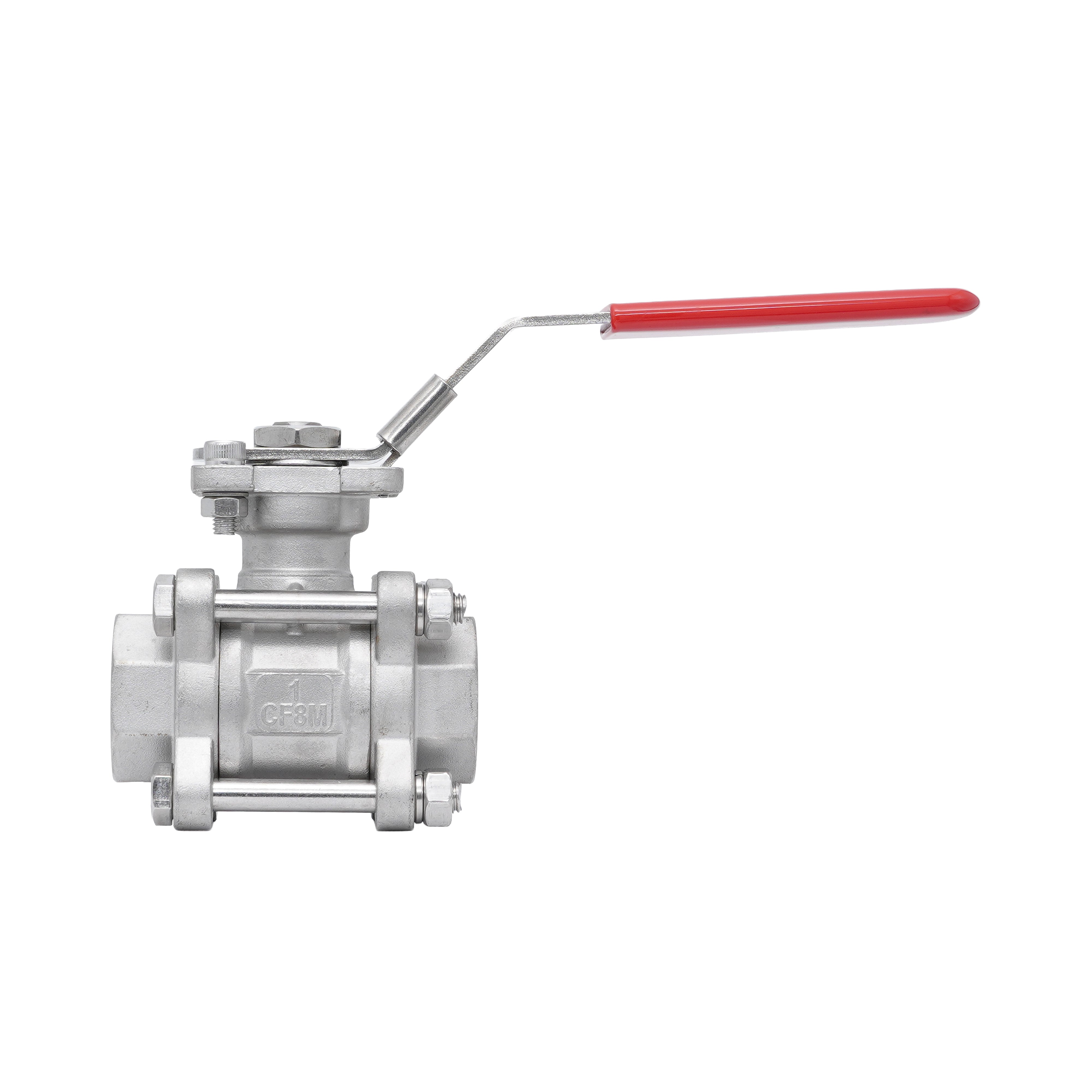

This 2-way 3-piece stainless steel ball valve has Rp 2 1/2 BSPT female threaded ports. The housing and the ball are made of 316 stainless steel (1.4408/CF8M) paired with long-lasting RTFE seats to handle a wide range of media.
The valve is rated up to 69 bar at 20°C (1000 psi at 68°F). It is suitable for temperatures from -29°C to 210°C (-20°F to 410°F). The valve is suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media. The valve has a 63 mm bore, with Kv value of 530 m3/h (at a differential pressure of 1 bar) (Cv = 612.7 gpm). The valve has a full bore design, offering unobstructed flow to minimise pressure drop.

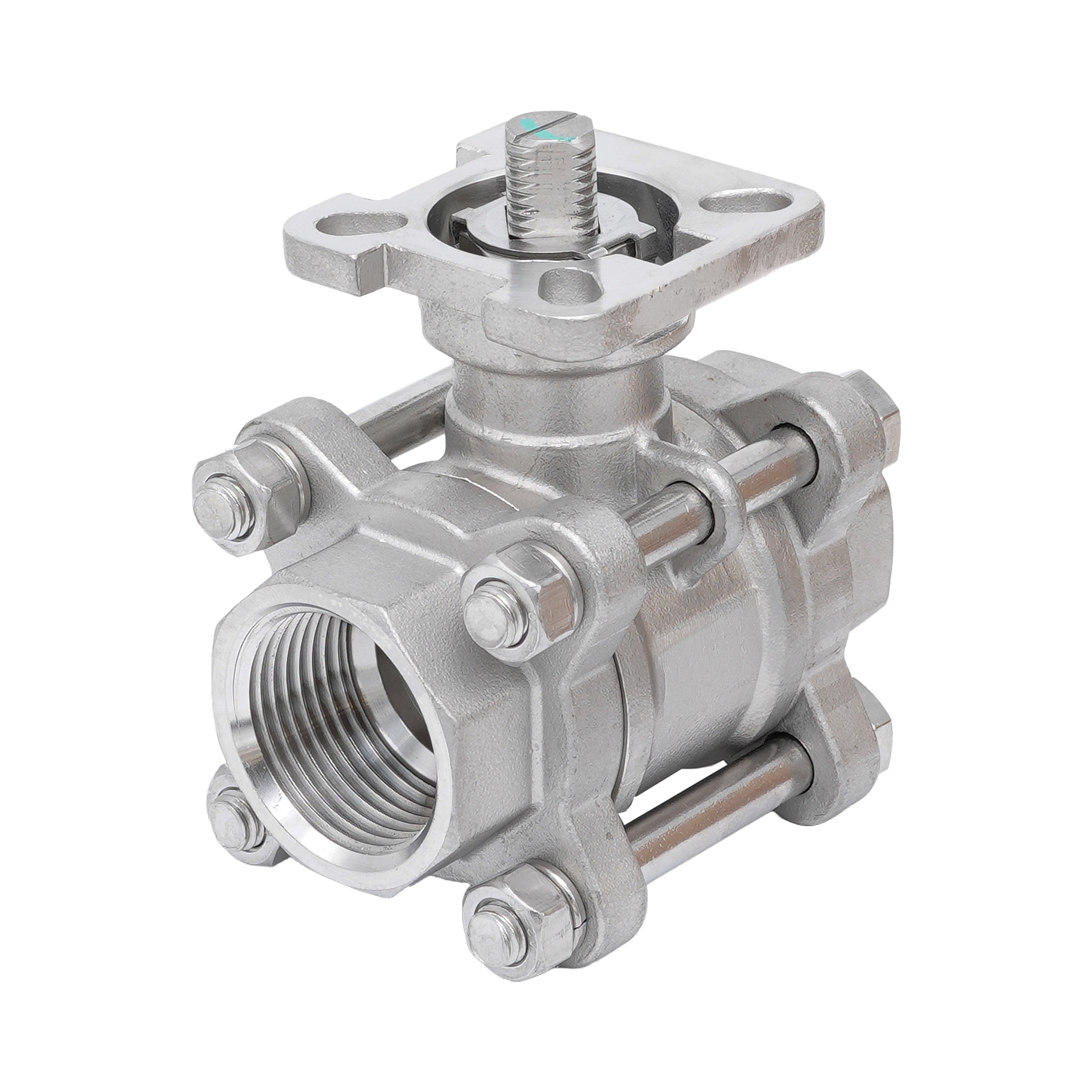

It is operated manually using a 304 stainless steel 1.4301 handle. The valve is suitable for electrical or pneumatic actuation thanks to the ISO-top 5211 F07/F10.
- Precio normal
- $460.06 USD
Solo vendemos a empresas registradas
Descripción
This 2-way 3-piece stainless steel ball valve has Rp 2 1/2 BSPT female threaded ports. The housing and the ball are made of 316 stainless steel (1.4408/CF8M) paired with long-lasting RTFE seats to handle a wide range of media.
The valve is rated up to 69 bar at 20°C (1000 psi at 68°F). It is suitable for temperatures from -29°C to 210°C (-20°F to 410°F). The valve is suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media. The valve has a 63 mm bore, with Kv value of 530 m3/h (at a differential pressure of 1 bar) (Cv = 612.7 gpm). The valve has a full bore design, offering unobstructed flow to minimise pressure drop.
It is operated manually using a 304 stainless steel 1.4301 handle. The valve is suitable for electrical or pneumatic actuation thanks to the ISO-top 5211 F07/F10.
Pros:
- Suitable for aggressive media due to the 316 stainless steel (1.4408/CF8M) housing and ball
- Wide operating temperature range from -29°C to 210°C (-20°F to 410°F)
- Full-bore design for minimal pressure loss and maximum flow
- 3-piece design offers easier maintenance and part replacement
- RTFE seats for smooth operation and tight shut-off
- Lockable handle prevents unauthorized tampering or accidental operation
- Suitable for electrical or pneumatic actuation thanks to the ISO-top F07/F10
Dimensions
