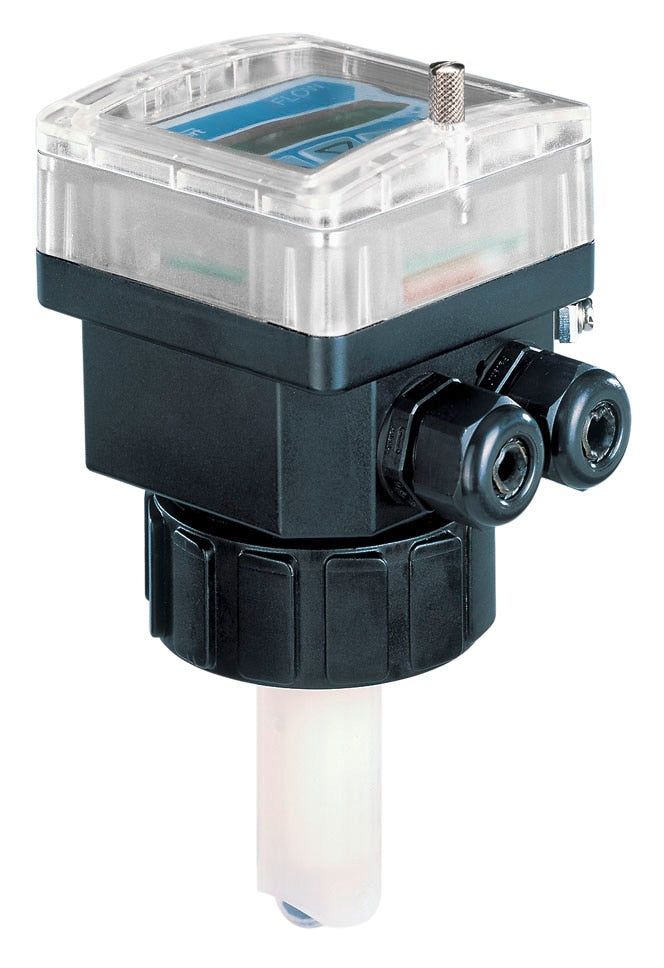

Paddle wheel insertion flow meter, compact - Bürkert 8025 - 418432
Insertion paddle-wheel flow meter with display for neutral and mildly aggressive, particle-free liquids. Measures and totalises flow and can control dosing, with a 4-20 mA output for process integration. An insertion meter reaches a probe into the pipe through a single port, so one compact unit fits a wide range of pipe sizes without a full-bore meter body. It installs through a tee or weld-in fitting (such as the Bürkert S020), ordered to match your line. Rated for media up to 80 °C.
- Precio normal
- $1,749.99 USD
Solo vendemos a empresas registradas
Descripción
Insertion paddle-wheel flow meter with display for neutral and mildly aggressive, particle-free liquids. Measures and totalises flow and can control dosing, with a 4-20 mA output for process integration. An insertion meter reaches a probe into the pipe through a single port, so one compact unit fits a wide range of pipe sizes without a full-bore meter body. The flow meter requires a matching installation fitting such as the Bürkert S020 to mount the meter in a line. Rated for media up to 80 °C. The meter measures 0.5 to 75000 l/min; the usable part of that range depends on the chosen S020 fitting and pipe diameter (DN).
Pro
- 4-20 mA output and totaliser
- Display with dosing and batch control
- Fits DN6 to DN400 lines
Con
- Installation fitting (Bürkert S020) required, ordered separately
- Requires a separate insertion fitting
- Paddle wheel not suitable for media with particles or fibres
