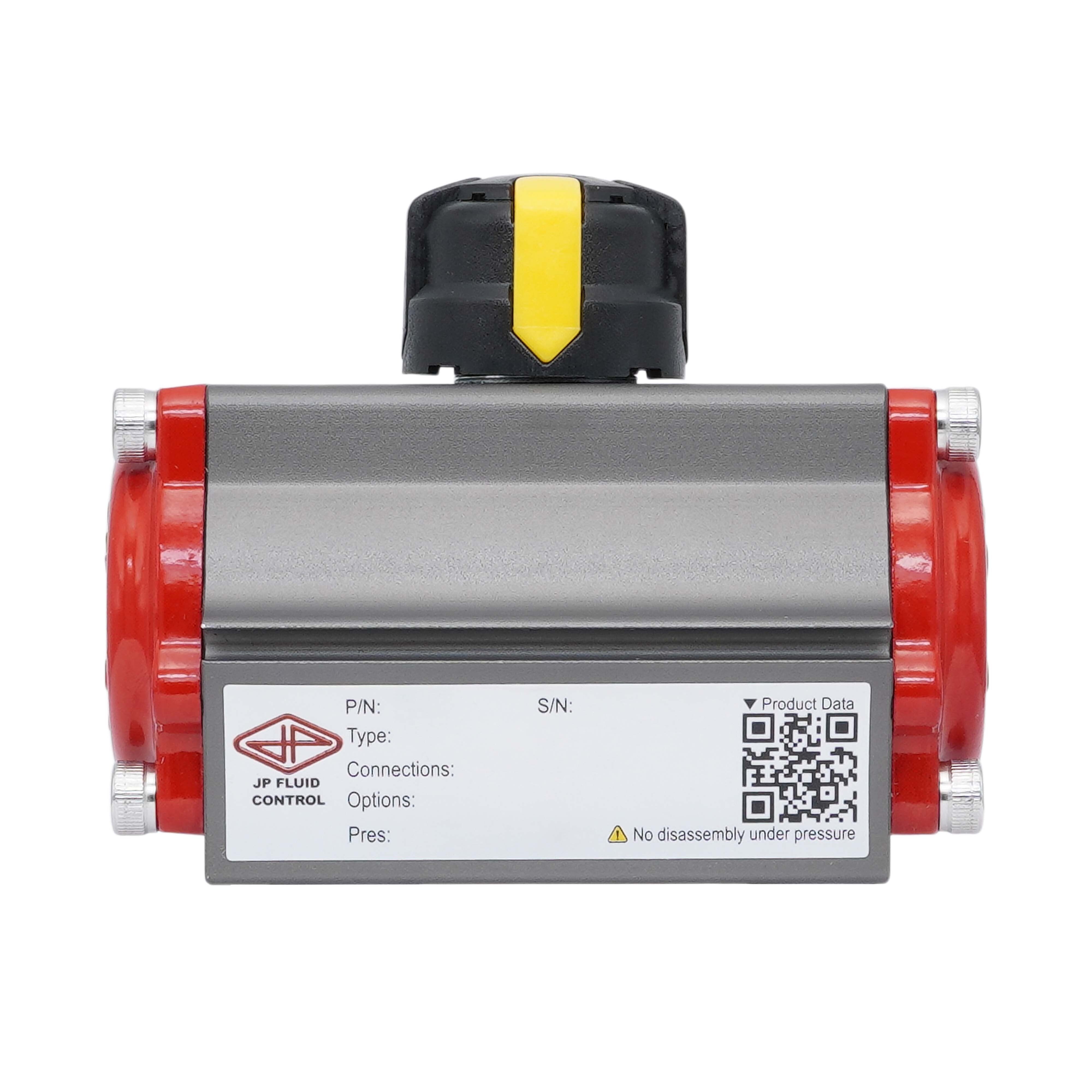

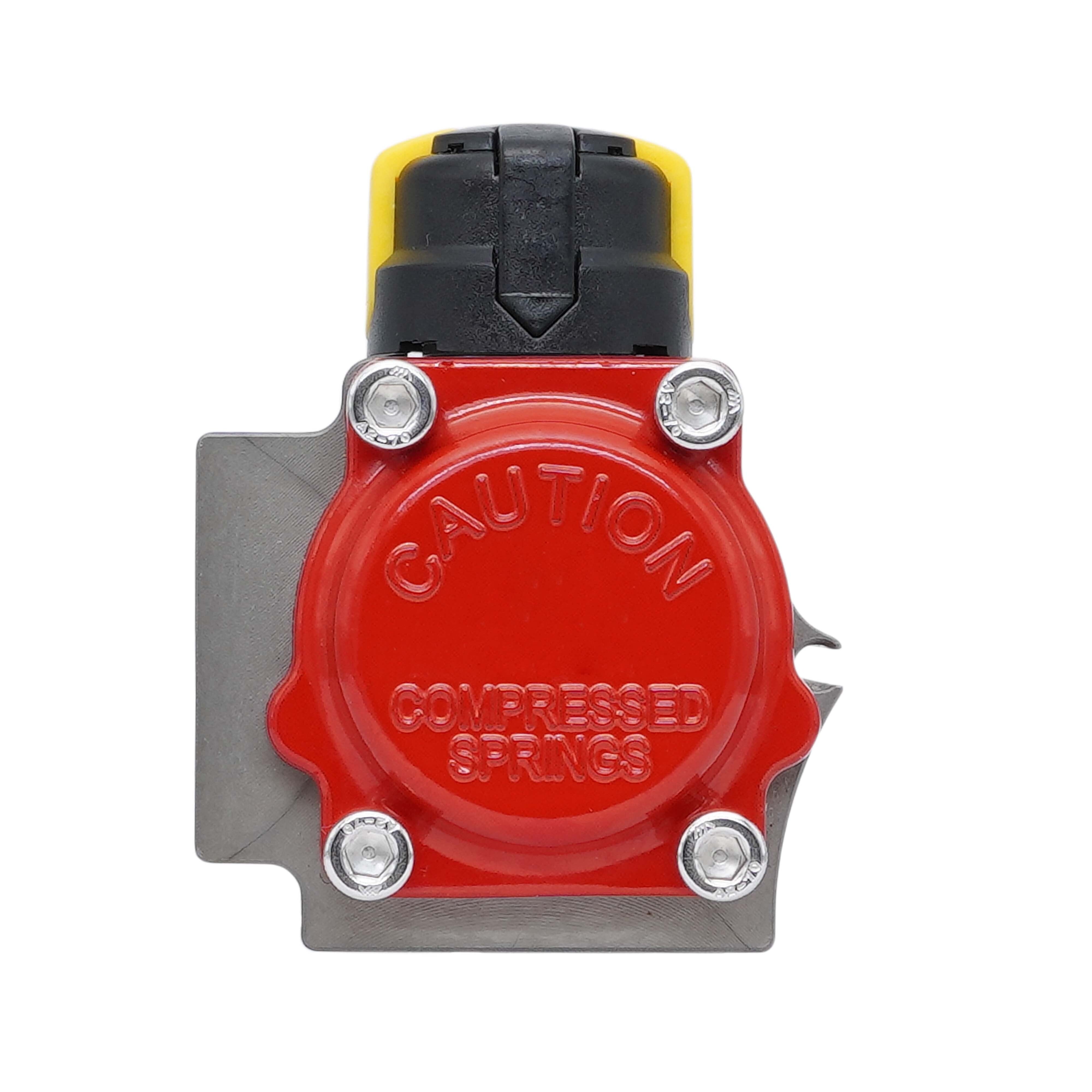

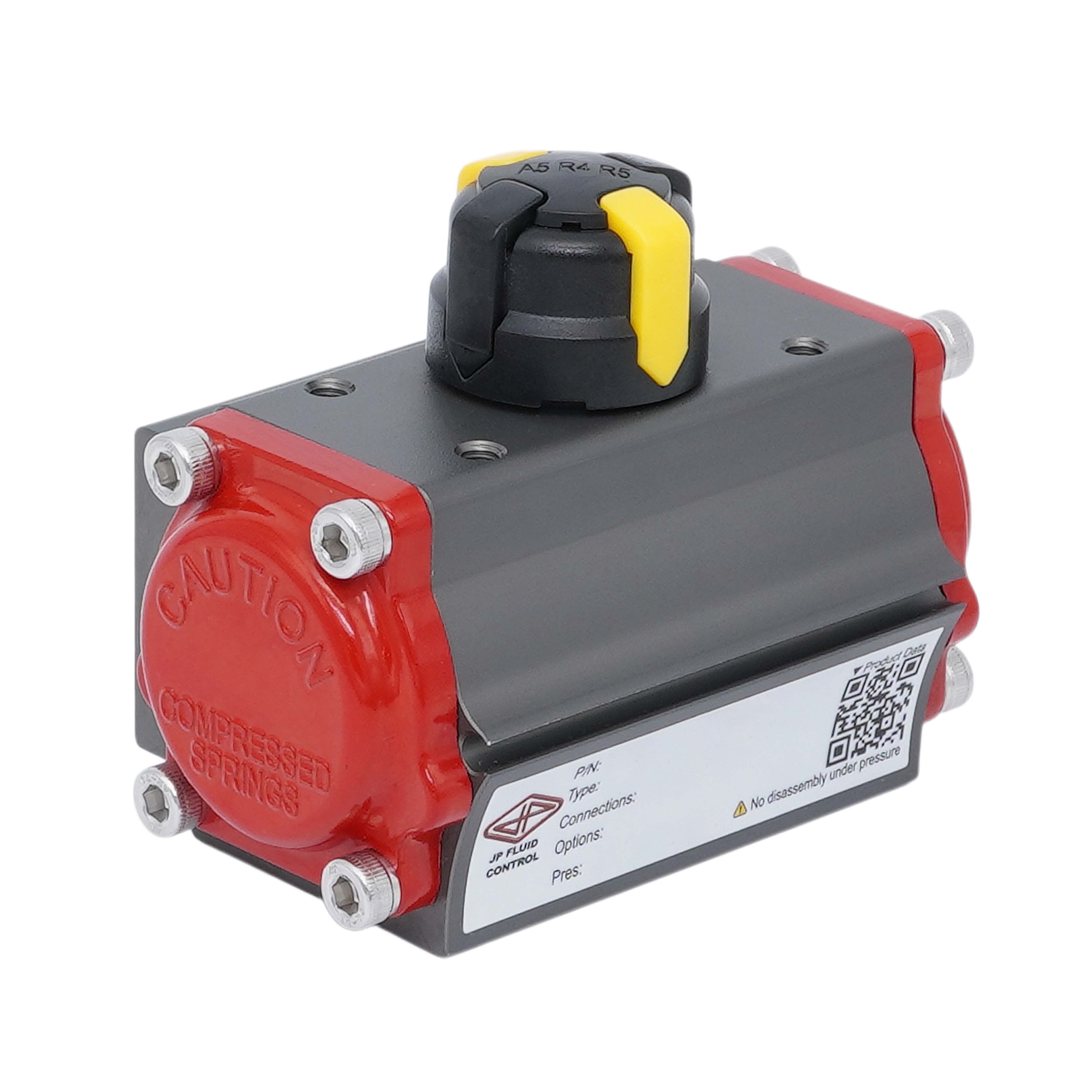

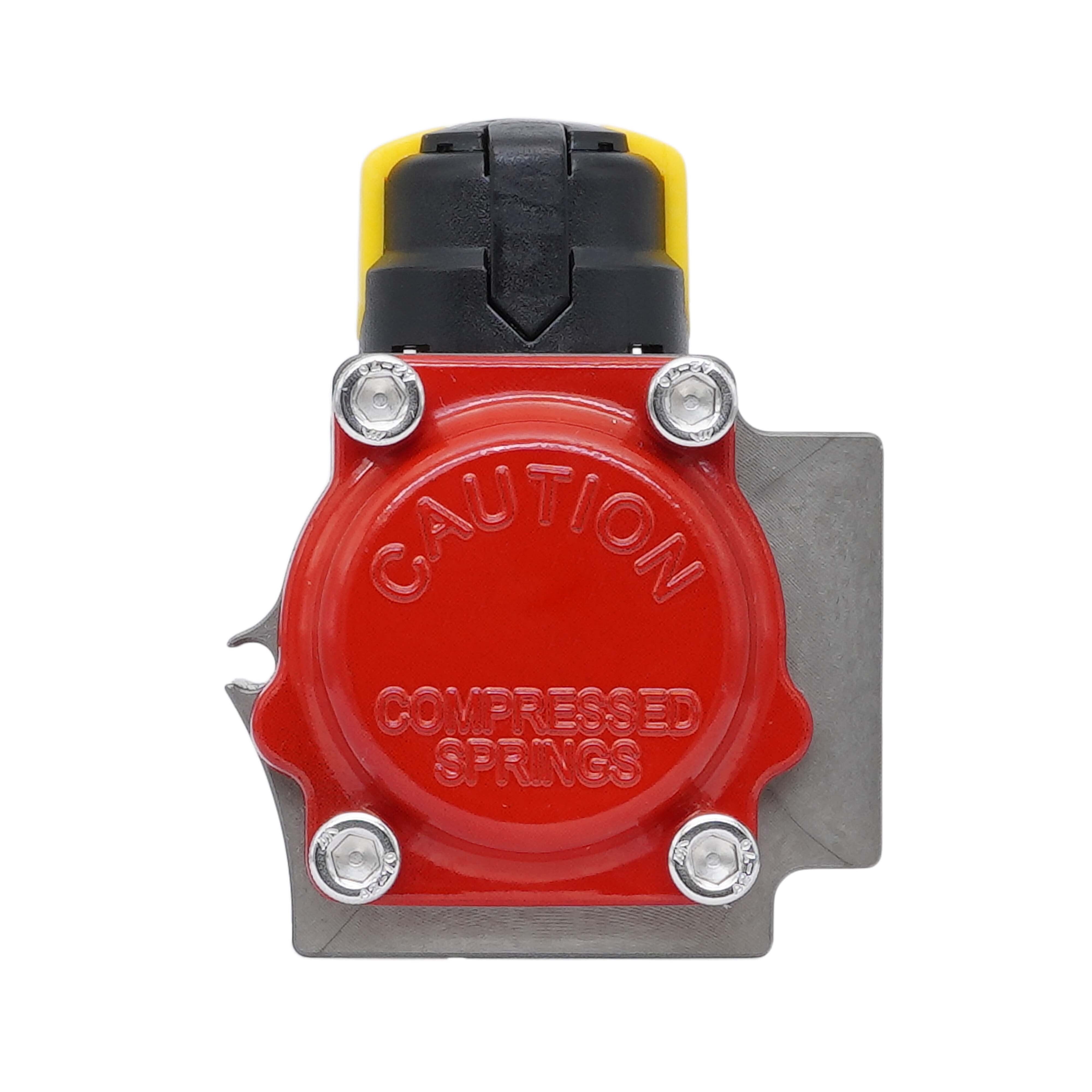

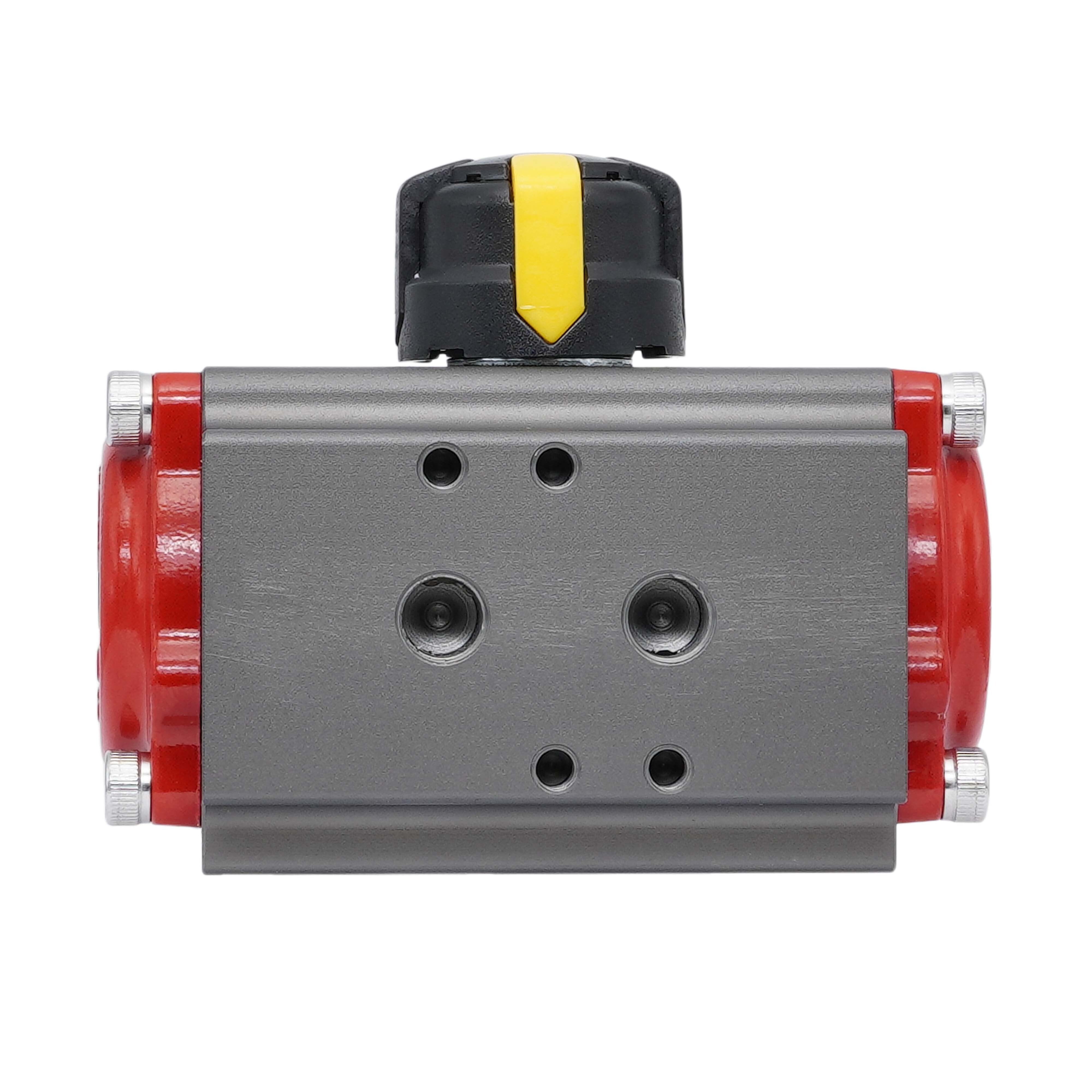

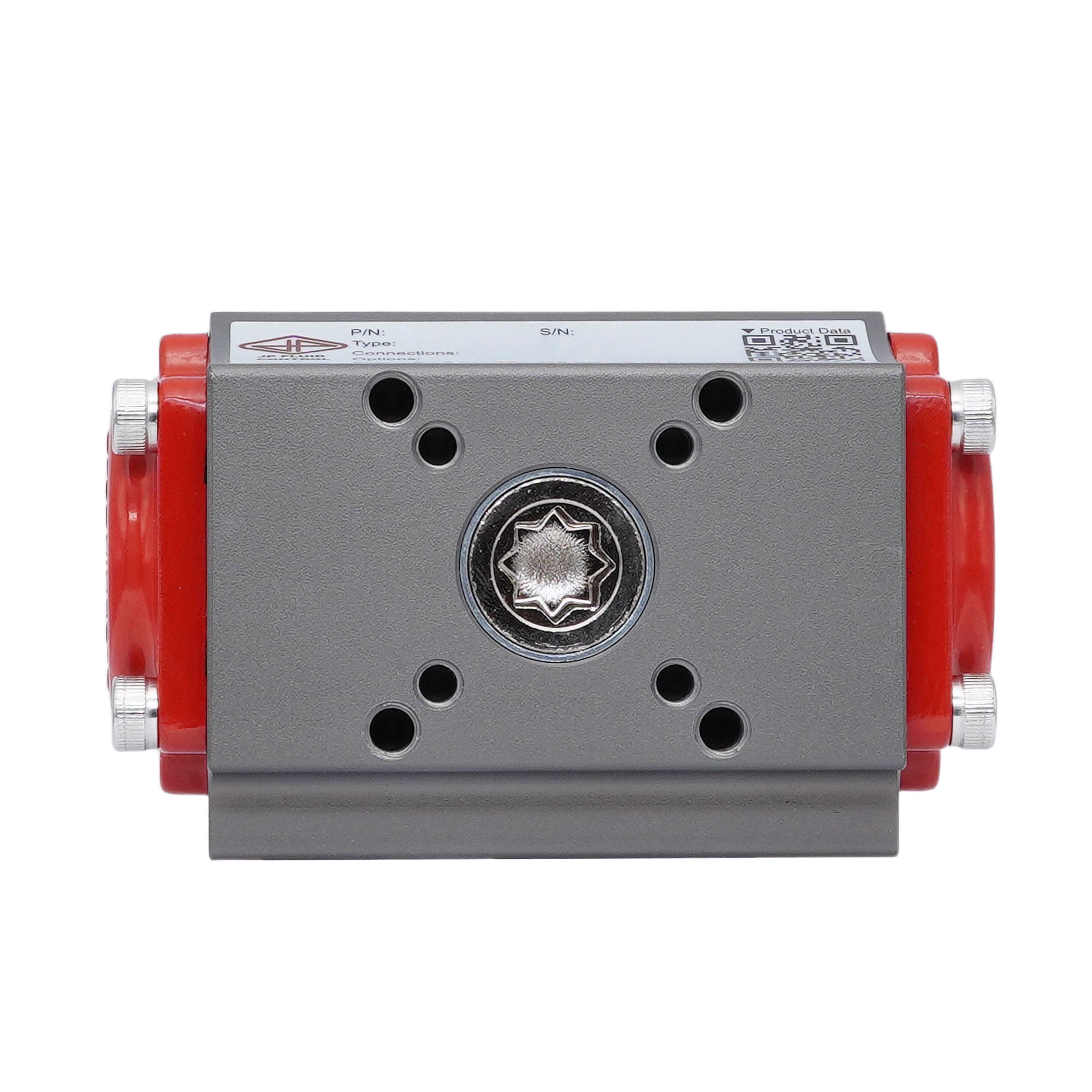

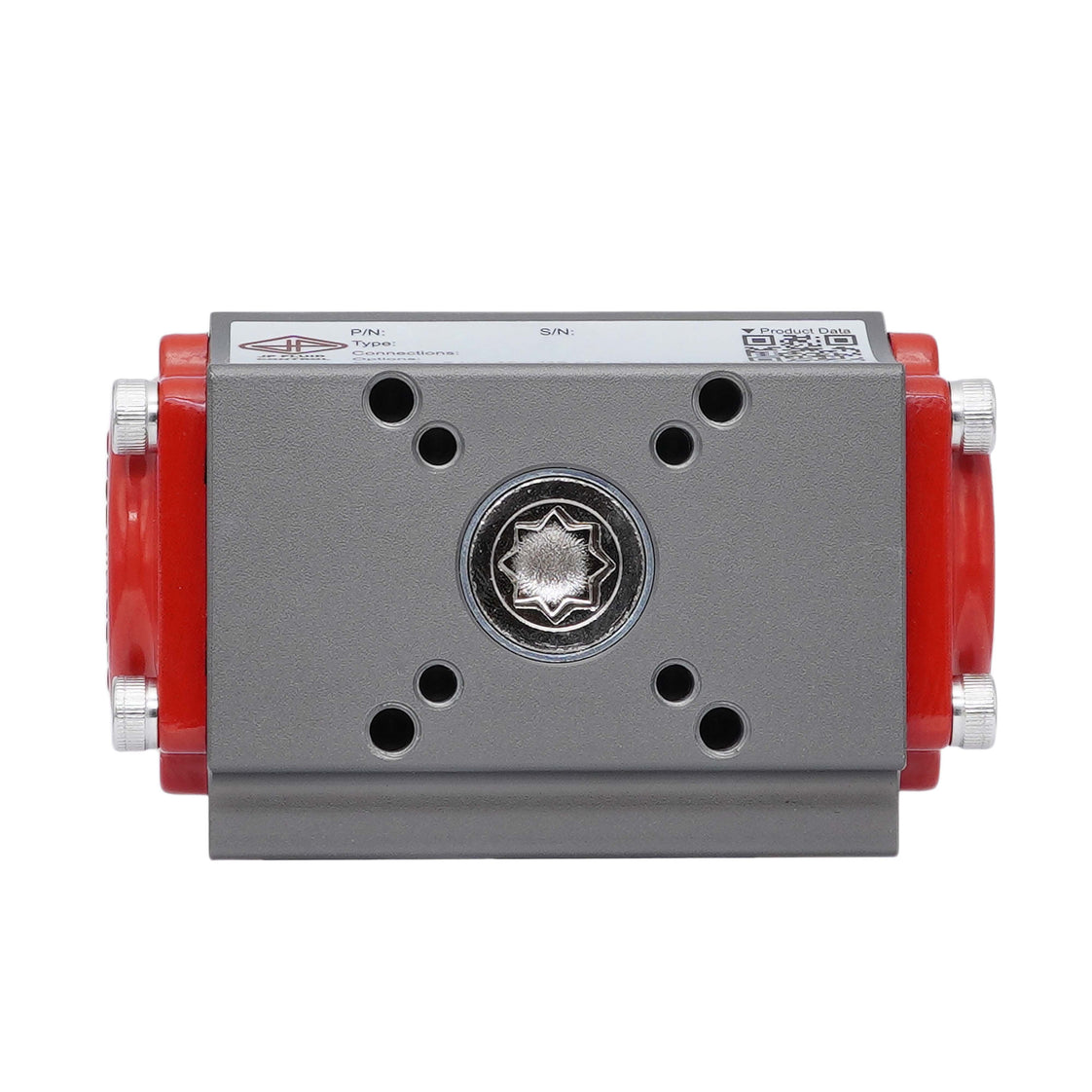

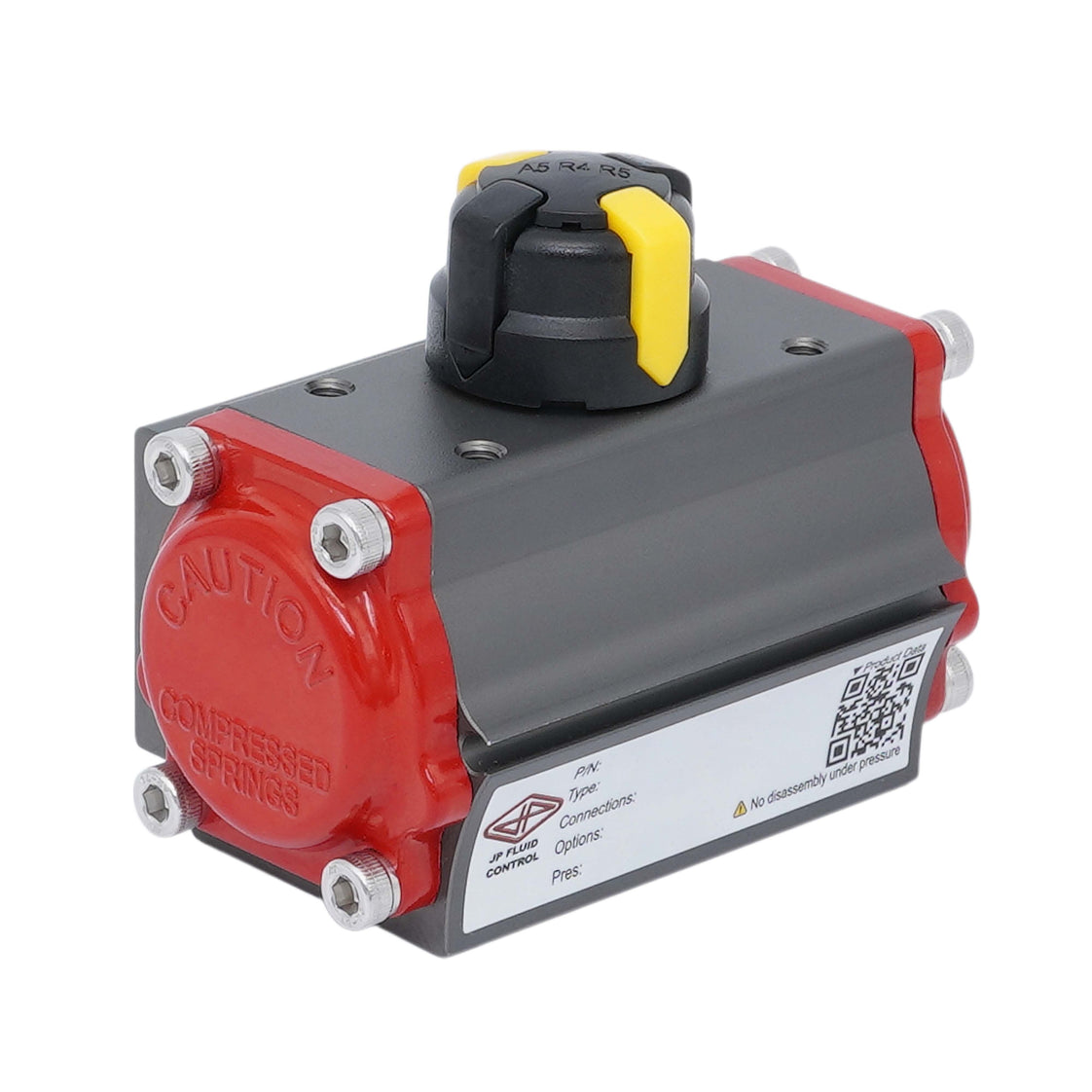

Pneumatic Actuator Rack & Pinion Double Acting 10.1Nm at 6bar F04 - PR40D-F04
This double-acting pneumatic actuator is ideal for quarter-turn valves like ball or butterfly valves. The rack-and-pinion mechanism delivers a constant torque of 10.1 Nm at 6 bar (7.45 lb-ft @ 87 psi) with an input range of 3 - 8 bar (43-116 psi). It fits ISO 5211 F04 valves with a 9 mm star connection. Suitable for -20 to 80 °C (-4 to 176 °F) with an NBR seal. The 35-micron hard anodized aluminum body and polyester coated end covers ensure durability. Features include: mounting holes for Namur 1/4 inch solenoid valves, a 50 x 25 mm interface for VDI/VDE 3845 limit switch boxes, BSPP air ports, stopper bolts to adjust end positions, a sensor mounting groove, and a clear position indicator. Lifespan 500,000+ cycles.
- Precio normal
- $35.04 USD
Solo vendemos a empresas registradas
Descripción
This double-acting pneumatic actuator is ideal for quarter-turn valves like ball or butterfly valves. The rack-and-pinion mechanism delivers a constant torque of 10.1 Nm at 6 bar (7.45 lb-ft @ 87 psi) with an input range of 3 - 8 bar (43-116 psi). It fits ISO 5211 F04 valves with a 9 mm star connection. Suitable for -20 to 80 °C (-4 to 176 °F) with an NBR seal. The 35-micron hard anodized aluminum body and polyester coated end covers ensure durability. Features include: mounting holes for Namur 1/4 inch solenoid valves, a 50 x 25 mm interface for VDI/VDE 3845 limit switch boxes, BSPP air ports, stopper bolts to adjust end positions, a sensor mounting groove, and a clear position indicator. Lifespan 500,000+ cycles. Comes with square adapter, bolts, and washers (M5, M6, M8).
Pros:
- Double-acting with 10.1 Nm torque at 6 bar
- Fits ISO 5211 F04 with 9 mm star
- Direct mounting of 1/4 Namur solenoid valve possible
- Guaranteed 500,000+ cycles
Cons:
- No ATEX or SIL certificate
