Rp 1-1/2'' L-Port 3-Way Stainless Steel Electric Ball Valve 24 V AC/DC

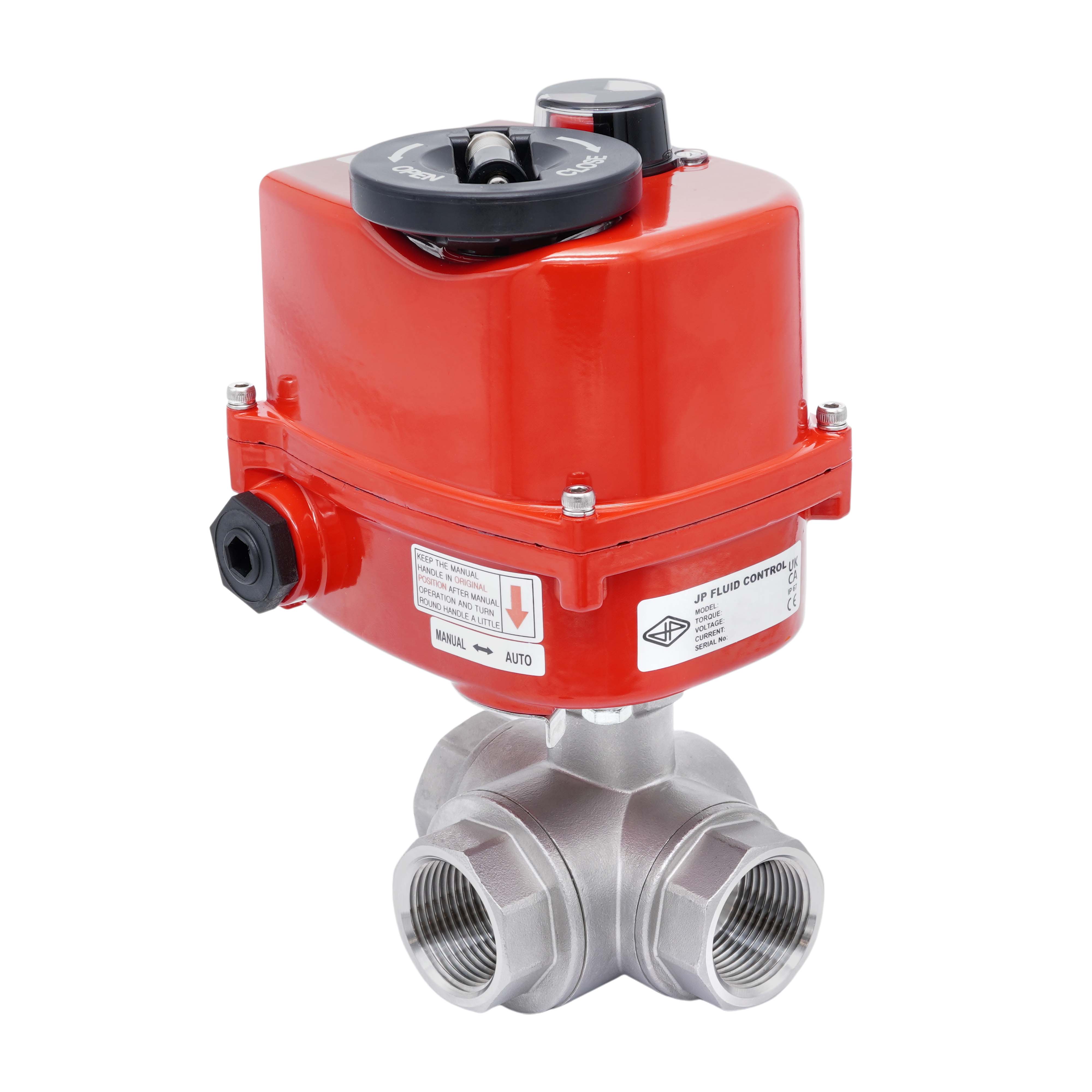

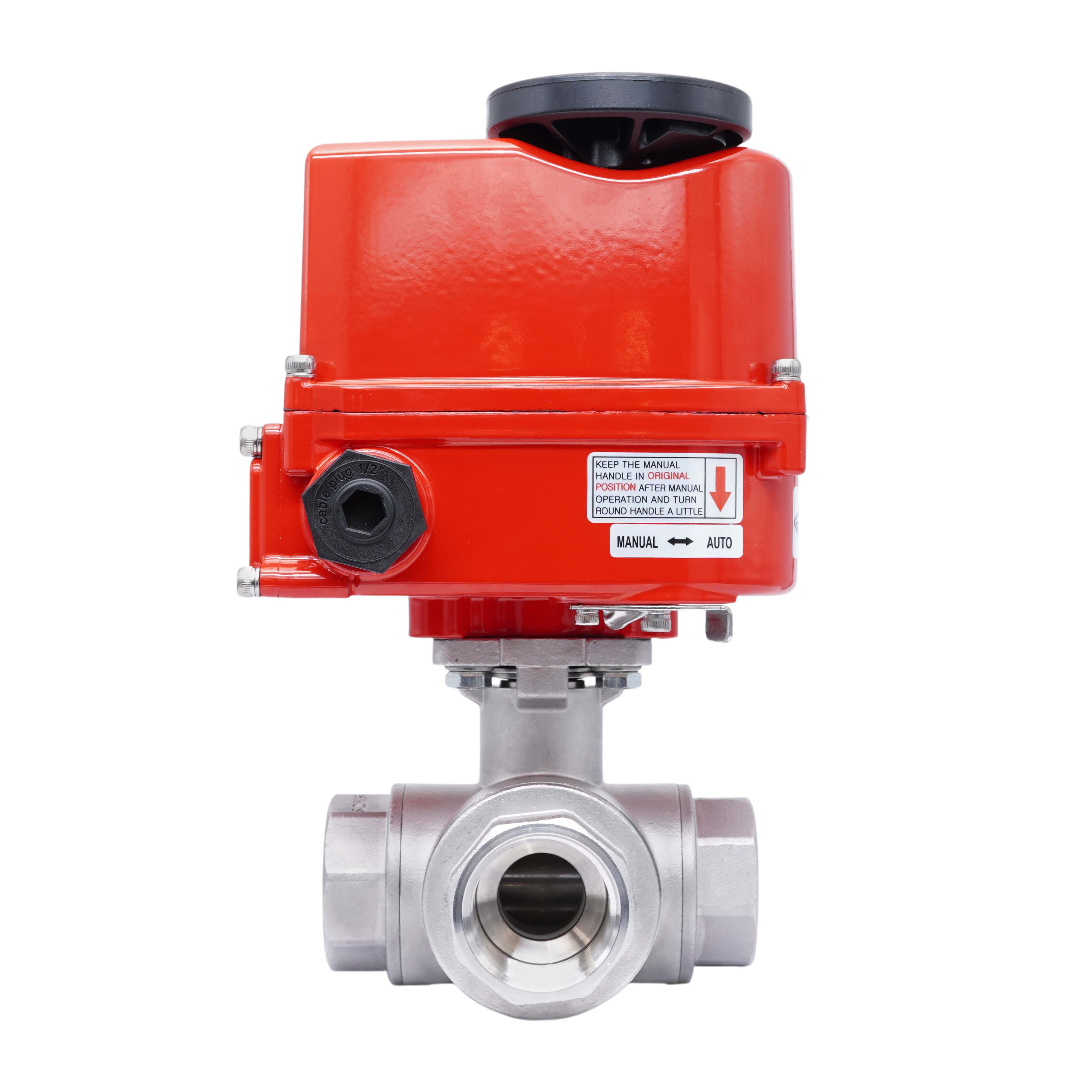

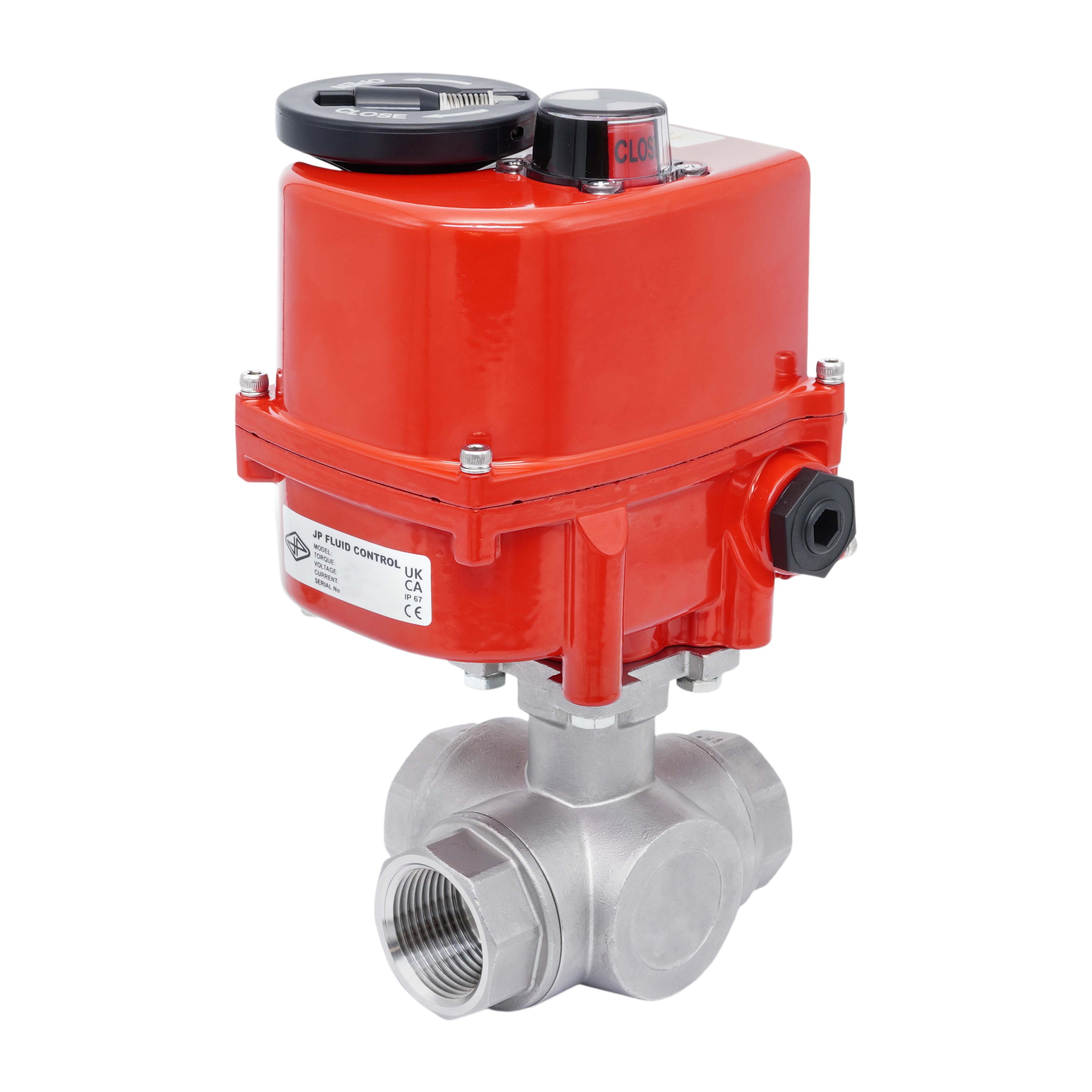

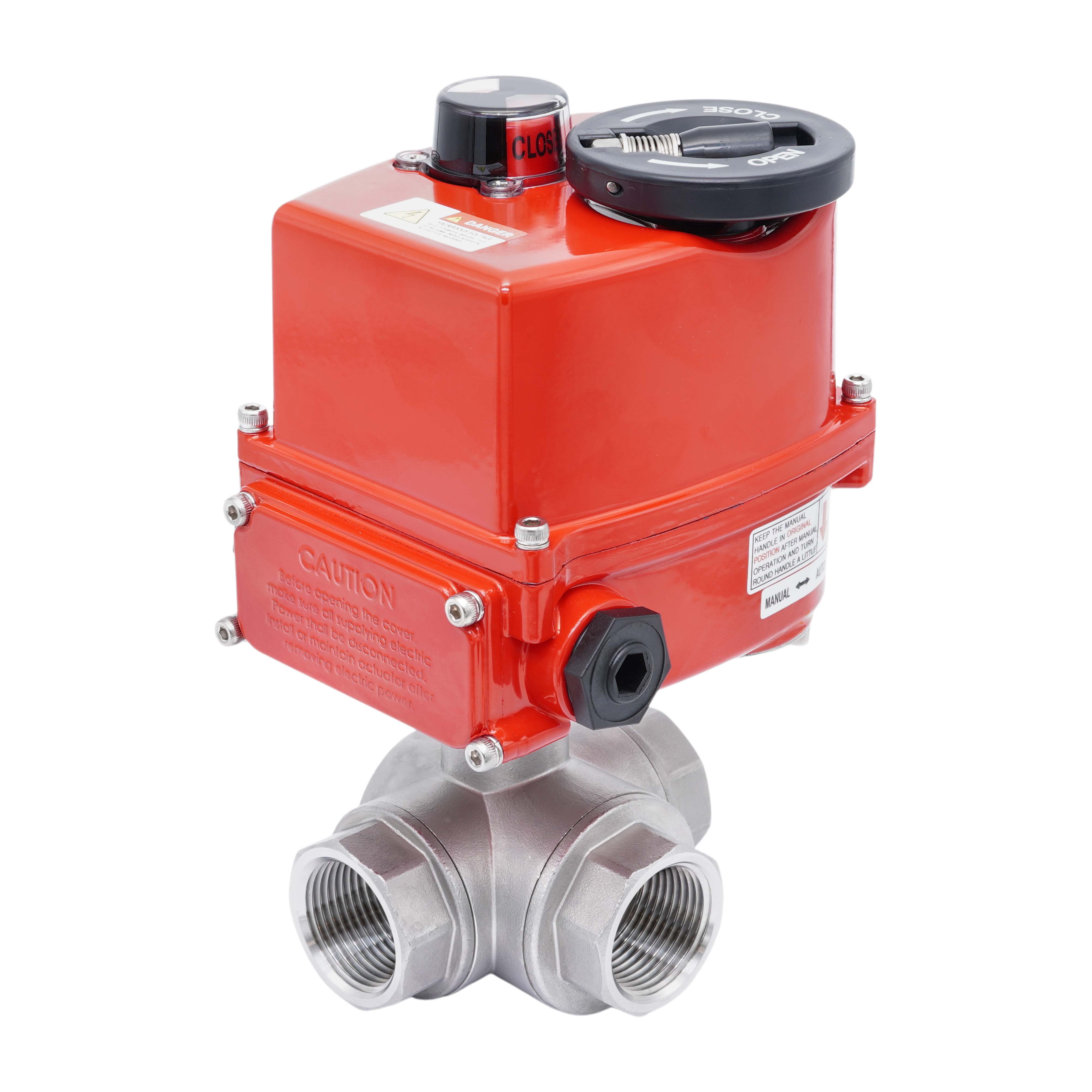

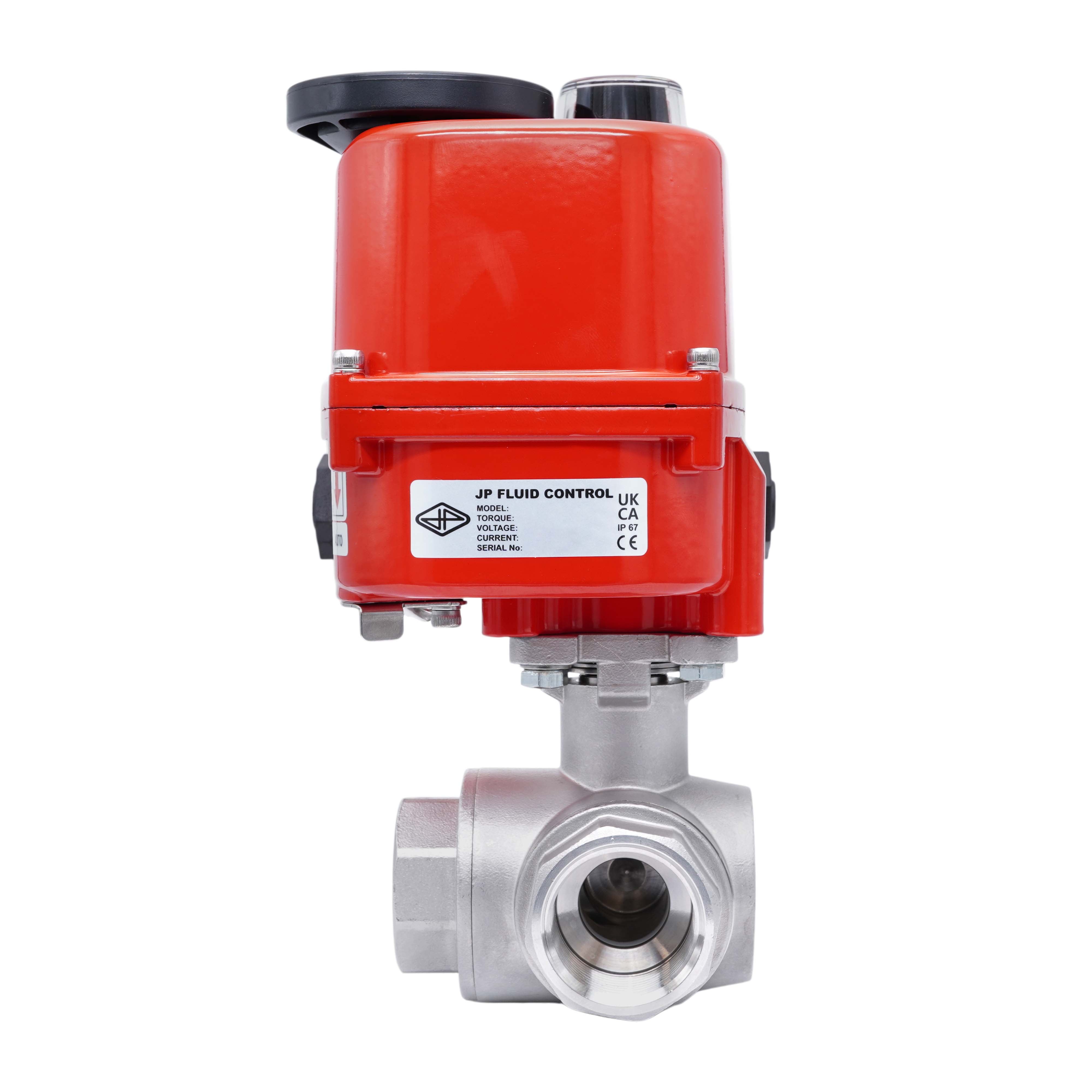

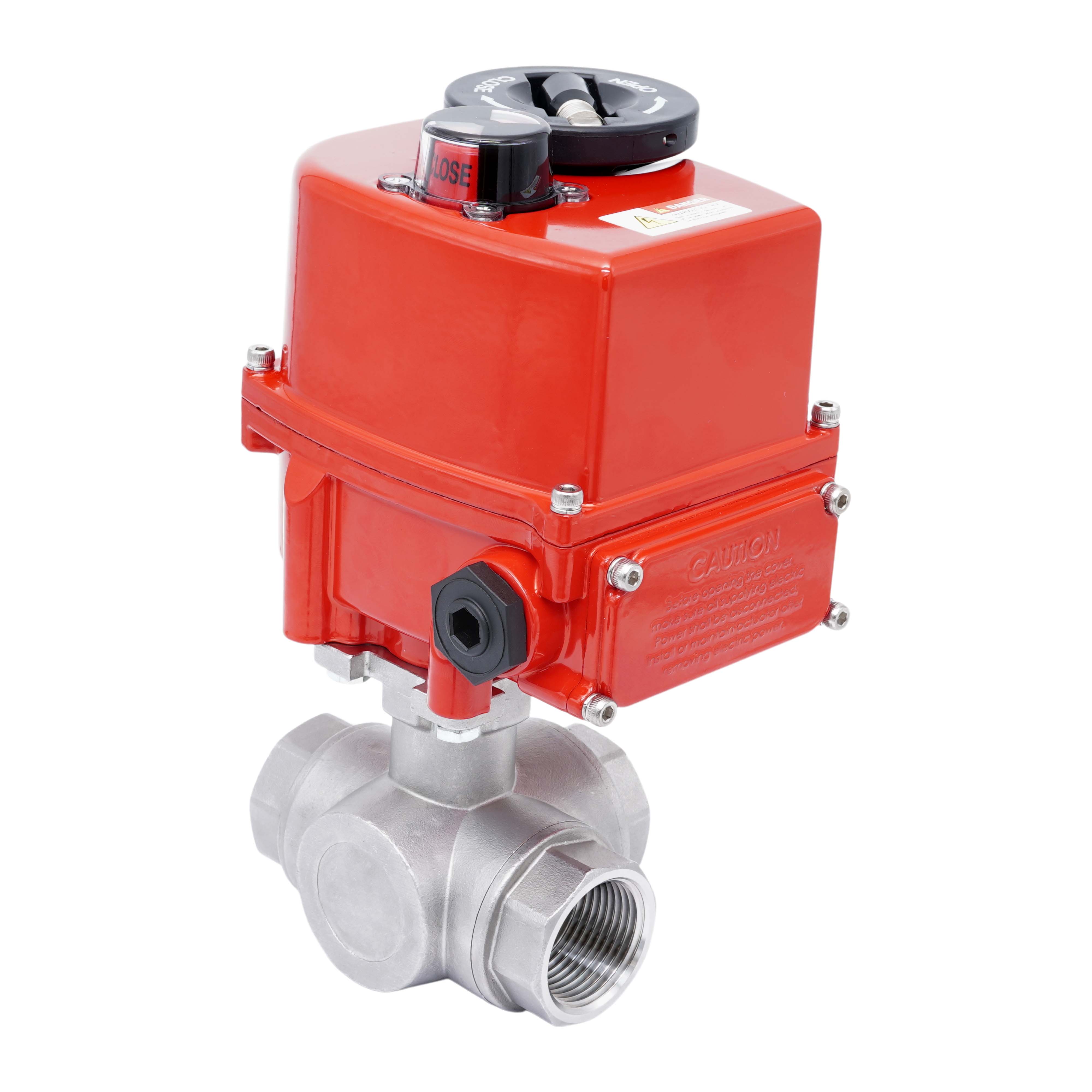

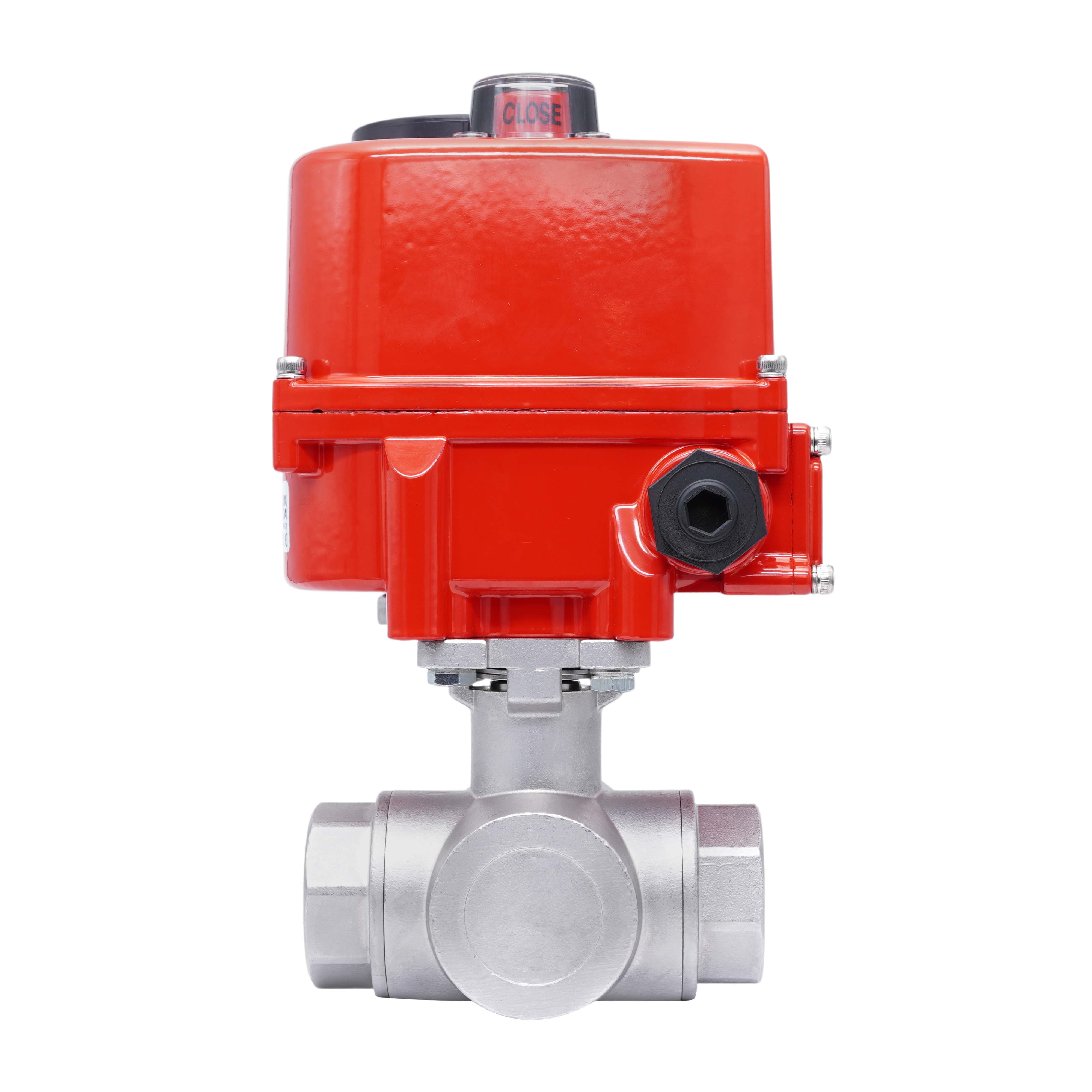

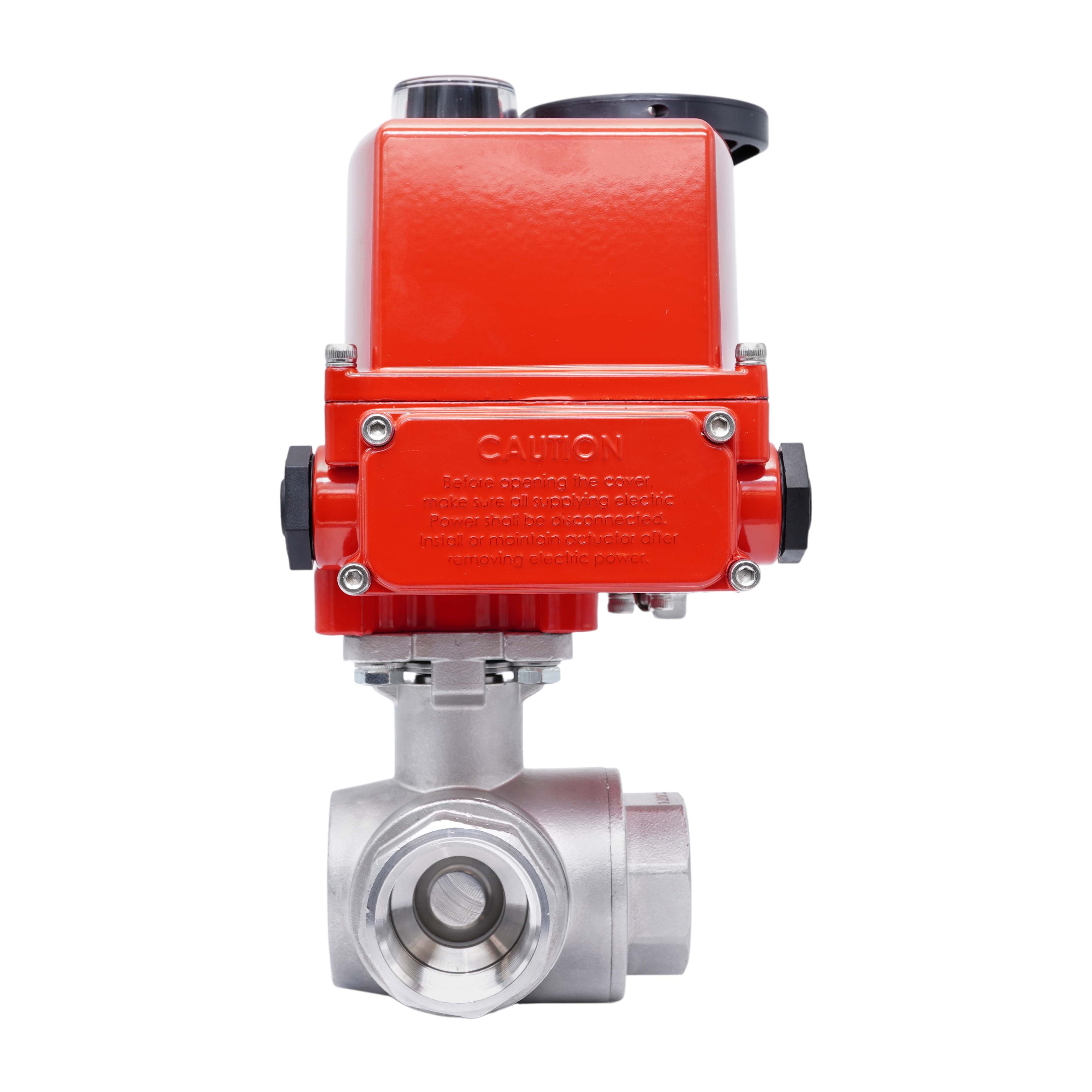

This JP Fluid Control electrical actuator is offered in combination with a TamesonPRO 3-way ball valve. The valve has Rp 1-1/2'' pipe threads (internal thread, BSP). The housing of the valve is made of stainless steel with a stainless steel ball and RTFE sealing. The actuator is suitable for both 24 volt DC (direct current) and 24 volt AC 50/60Hz (alternating current). With switches on the circuit board, the actuator can be set for AC or DC. The factory default setting is direct current (DC). The actuator has a robust aluminium housing (IP67, provided that an appropriate cable is connected) and delivers maximally 50 Nm torque. The valve rotates from 0 to 90 degrees in 13 seconds. When the ball reaches an end position, the electric motor is turned off and no energy is consumed. The actuator is equipped with two additional limit switches for position-feedback. The limit switches are positioned at 0 and 90 degrees. If required, the angular position of the switches can be adjusted by the user. A mechanical position indicator on the top of the actuator shows the valve position. The actuator is equipped with a manual override.
The valve has a 32 mm bore, with Kv value of 74.9 m3/h (Cv = 86.58 gpm). Kv expresses the flow rate of water in m3/h at a pressure drop of one bar. The valve is rated up to 69 bar at 20°C (1000 psi at 68°F). It is suitable for temperatures from -29°C up to 210°C (-20°F up to 410°F). The valve is suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media.- Precio normal
- $654.94 USD
Solo vendemos a empresas registradas
Descripción
This JP Fluid Control electrical actuator is offered in combination with a TamesonPRO 3-way ball valve. The valve has Rp 1-1/2'' pipe threads (internal thread, BSP). The housing of the valve is made of stainless steel with a stainless steel ball and RTFE sealing. The actuator is suitable for both 24 volt DC (direct current) and 24 volt AC 50/60Hz (alternating current). With switches on the circuit board, the actuator can be set for AC or DC. The factory default setting is direct current (DC). The actuator has a robust aluminium housing (IP67, provided that an appropriate cable is connected) and delivers maximally 50 Nm torque. The valve rotates from 0 to 90 degrees in 13 seconds. When the ball reaches an end position, the electric motor is turned off and no energy is consumed. The actuator is equipped with two additional limit switches for position-feedback. The limit switches are positioned at 0 and 90 degrees. If required, the angular position of the switches can be adjusted by the user. A mechanical position indicator on the top of the actuator shows the valve position. The actuator is equipped with a manual override.
The valve has a 32 mm bore, with Kv value of 74.9 m3/h (Cv = 86.58 gpm). Kv expresses the flow rate of water in m3/h at a pressure drop of one bar. The valve is rated up to 69 bar at 20°C (1000 psi at 68°F). It is suitable for temperatures from -29°C up to 210°C (-20°F up to 410°F). The valve is suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media.Pros:
- Robust stainless steel ball valve with Rp 1-1/2'' pipe threads
- Switching time only 8 seconds
- Strong IP67 actuator housing
- Both 24V AC and DC possible (set by switch)
- Two extra limit switches for position feedback
- Manual override control
- Clear visual position indicator
Bore and circuit function
The ball has a L-port. Rotating the ball 90 degrees allows you to switch between two circuits. The ports overlap during rotation.
Schematical drawing of the circuit function of L-port valves
Applications
This valve can be used in combination with gases and fluids. The valve is durable and suitable for different aggressive and corrosive media. The maximum pressure at room temperature is 69 bar (1000 psi), at higher temperatures the maximum allowed temperature decreases. The direction of pressure is not important, the direction of flow may be in any direction. The temperature range of the medium lies between -29°C to 210°C (-20°F to 410°F). At high temperatures, it is recommended to install the valve in a ventilated area. It is allowed to install the valve in a humid environment provided that all parts, like an appropriate electrical cable, are correctly fixed. Ball valves can be used with light contaminated fluids. Some examples of applications for this valve are HVAC, irrigation, industrial automation, water management.
Electrical Wiring Diagram
Follow the safety instructions and manual before you start installation.The actuator works with 24 volt DC and 24 volt AC (50/60Hz). On the PCB are two small switches to set the actuator to AC or DC. The default setting is DC. The actuator draws 0.2A nominal, and 1.2A at maximal torque. The actuator has 3-point control. Before using AC power supply, the switches on the PCB need to be adjusted first. Terminals 1 and 2 are permanently connected to the power supply. Terminals 3 and 4 are required to use the same signal (phase/null) as terminal 1. Connecting one of these control wires, closes or opens the valve. Never connect terminals 3 and 4 at the same time to prevent short circuit and damage.The actuator has two internal limit switches. As soon as the actuator's end position is reached (0 or 90 degrees), the motor turns off and no energy is consumed. In addition, in the actuator there are two additional limit switches for control purposes. The angular position of the limiti switches can be modified. Always connect the earth and do not use the pipes as ground.
Electrical wiring diagram of the AG-550-B actuator
Assembly
Make sure that the position of the ball and the actuator are properly set before assembly. The actuator is provided with two adapters to connect the actuator to the valve shaft. Mount the actuator to the valve with the provided bolts. There should be no play between both flange. Use our fittings range for the connection between the pipe and the valve.
Note: This product is delivered in separate parts, but with the required mounting accessories.
