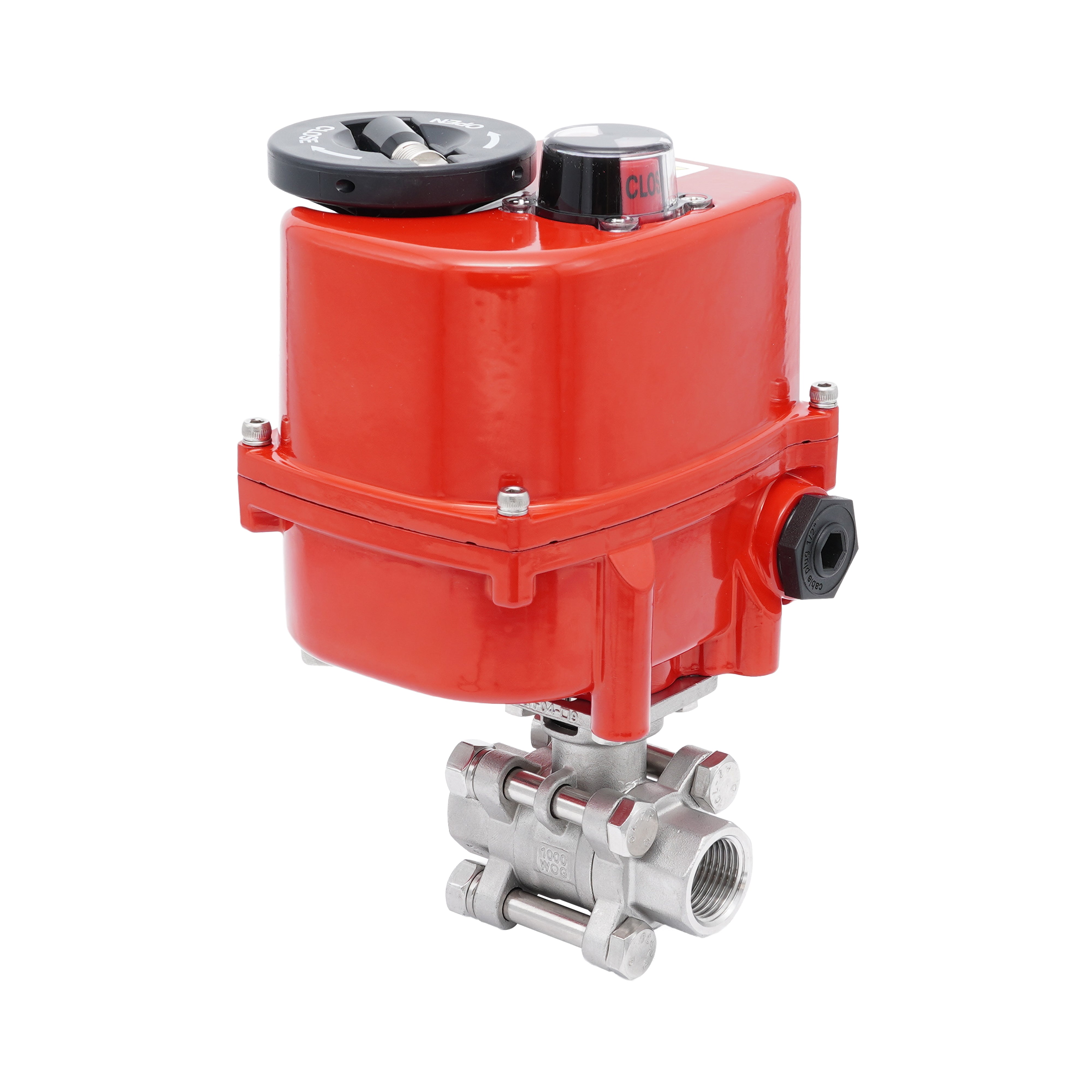

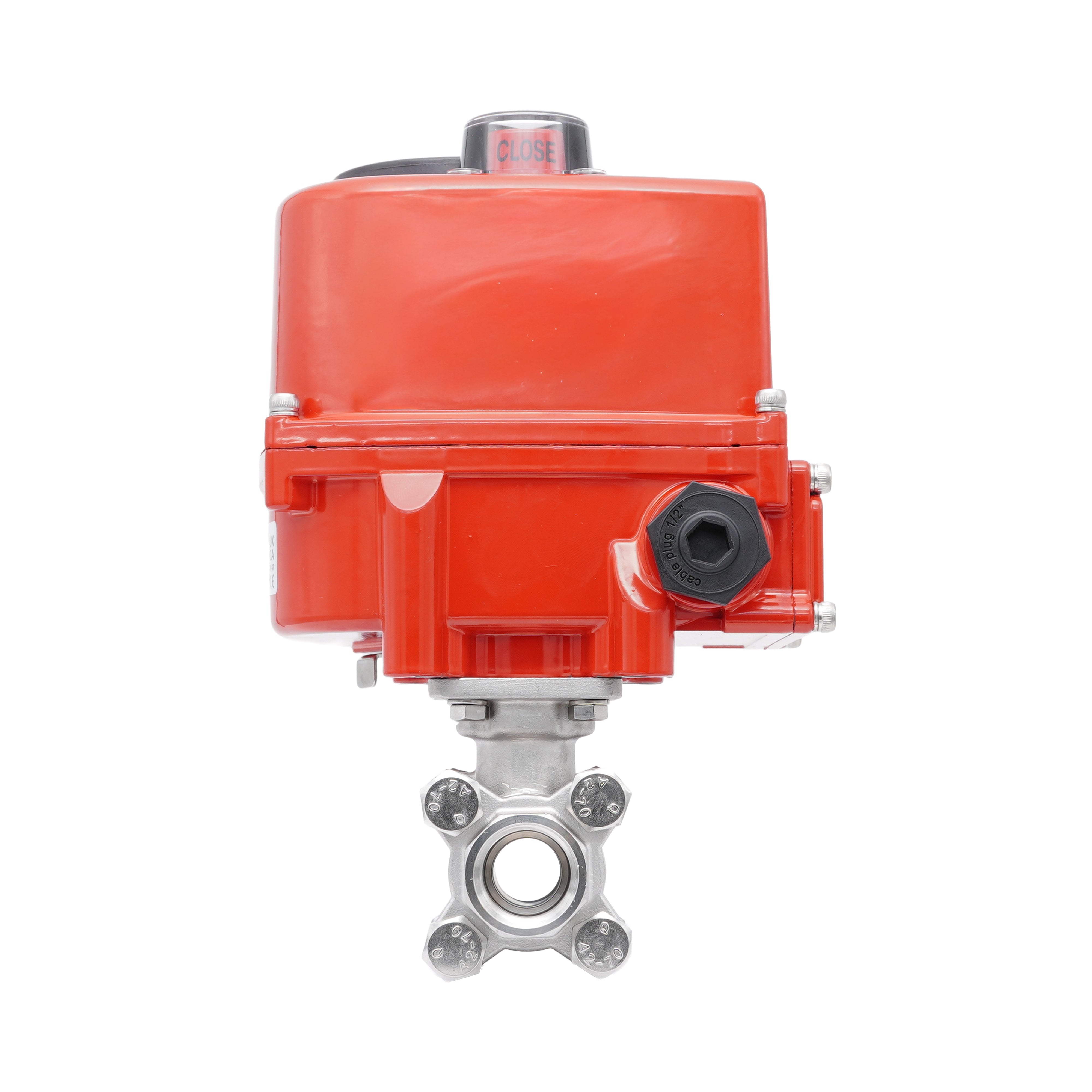

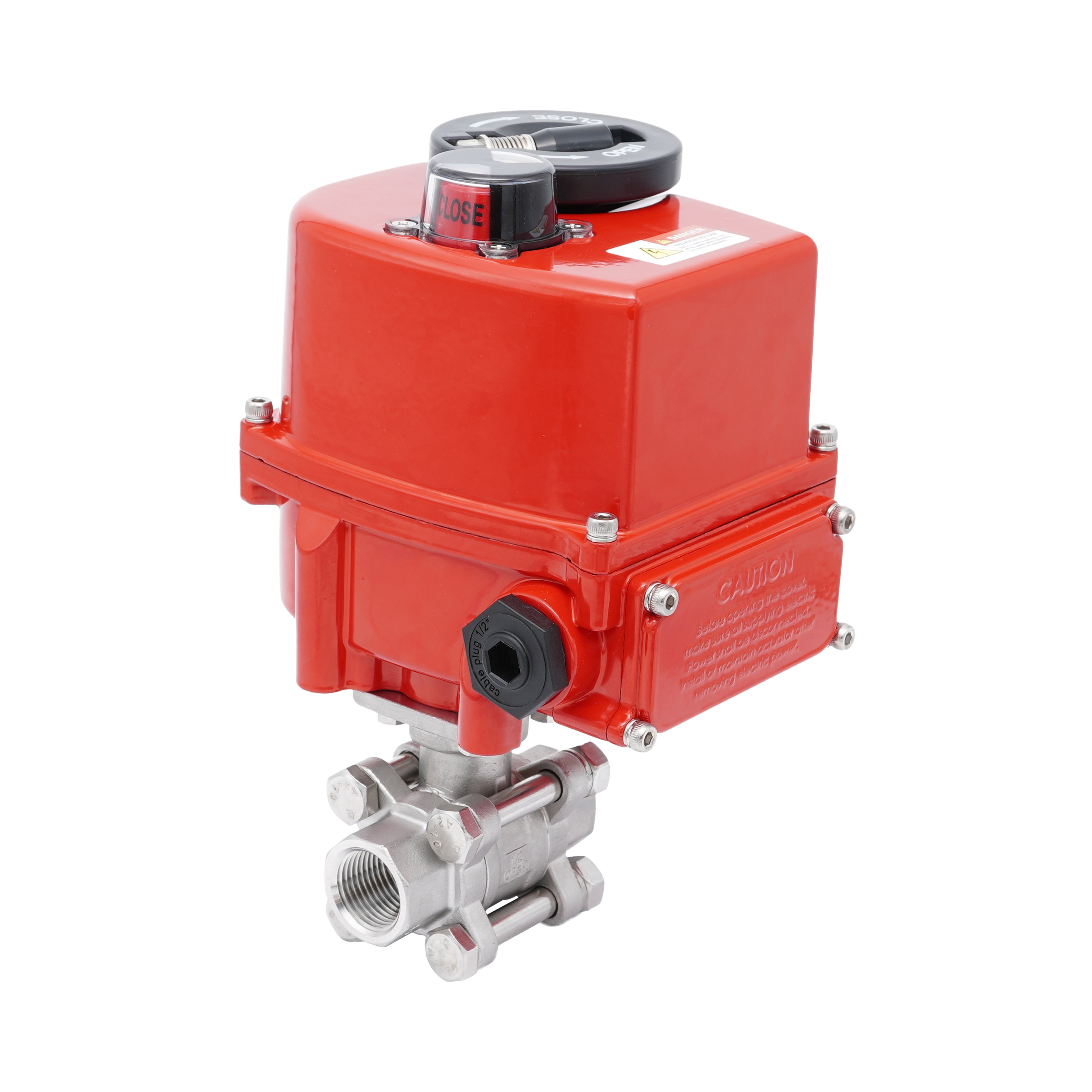

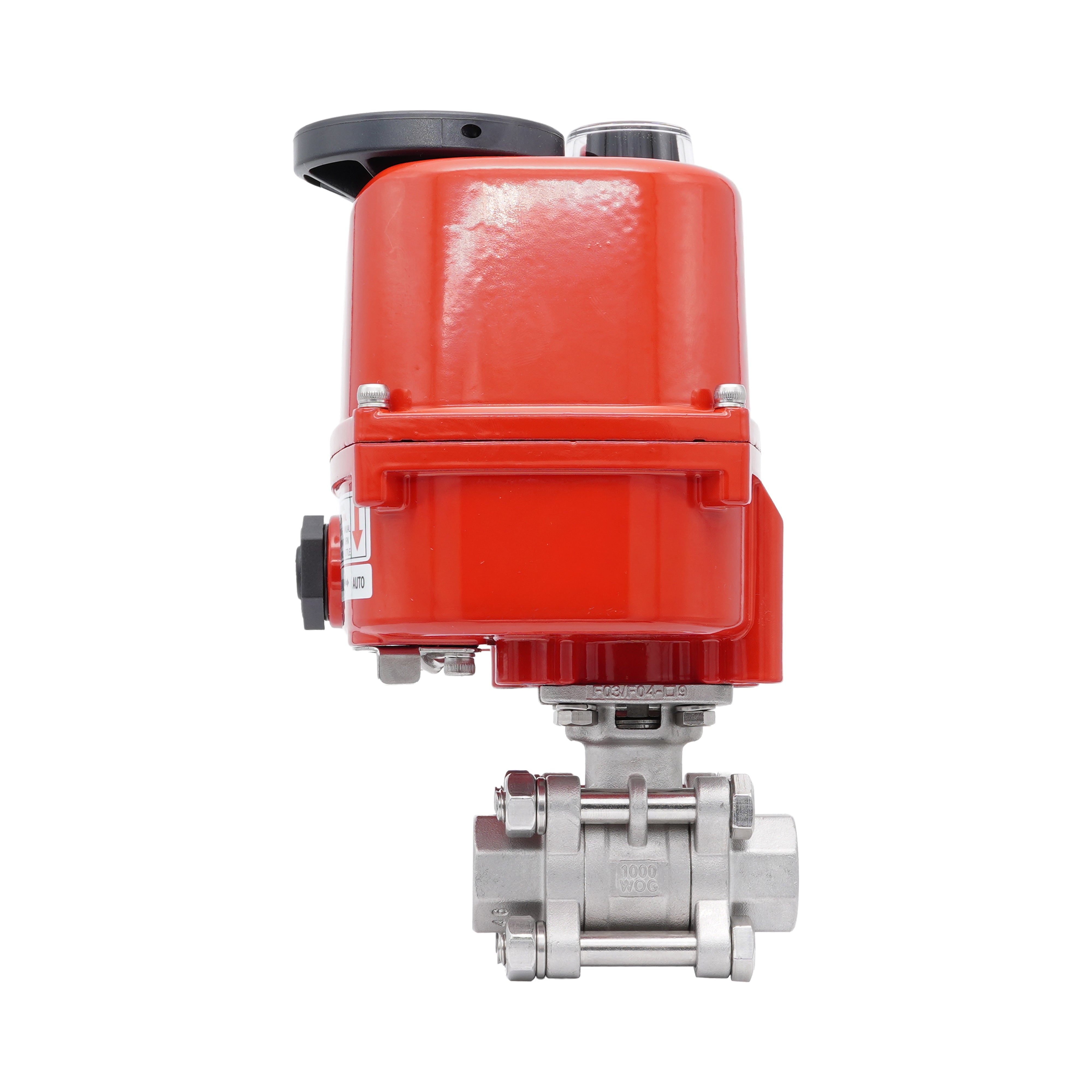

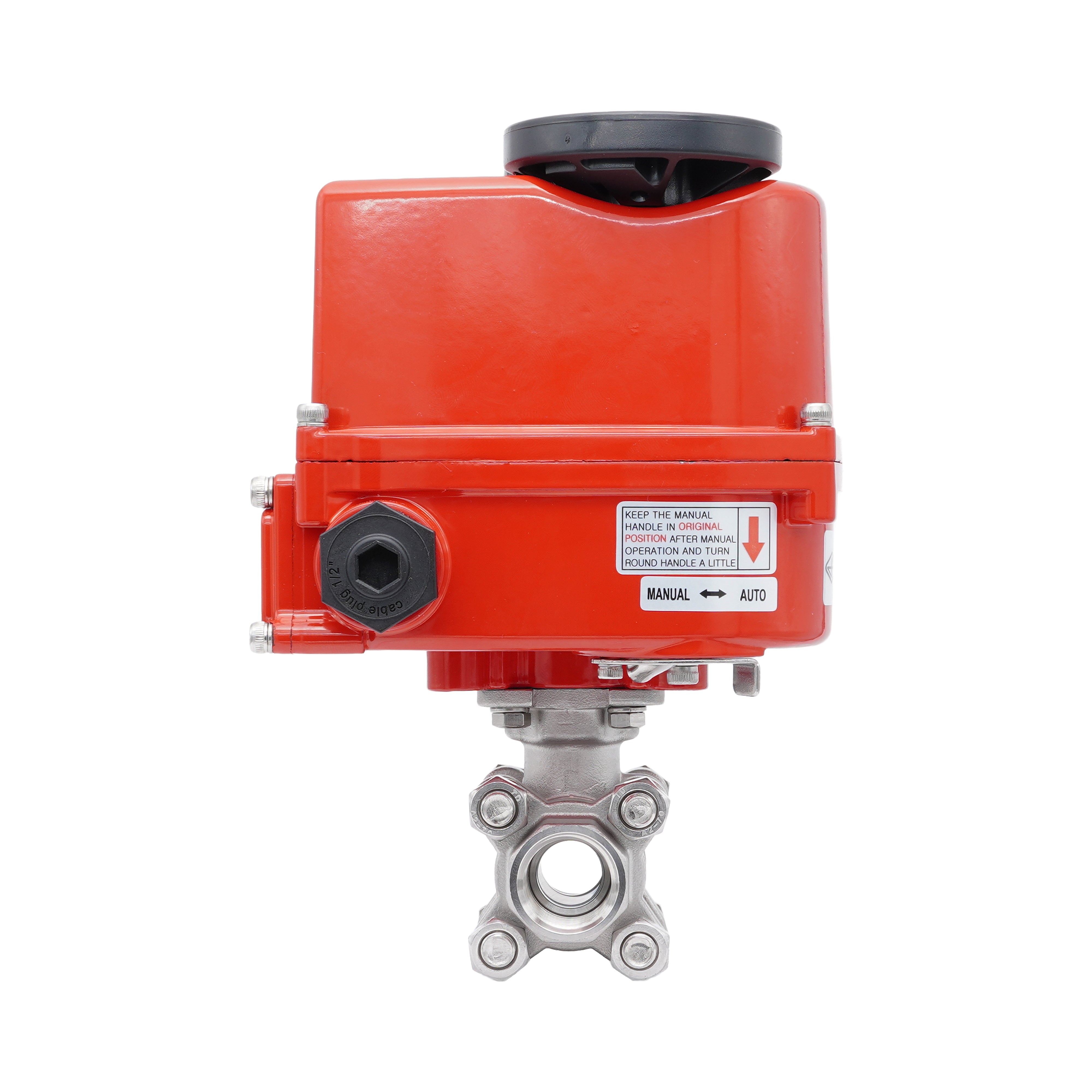

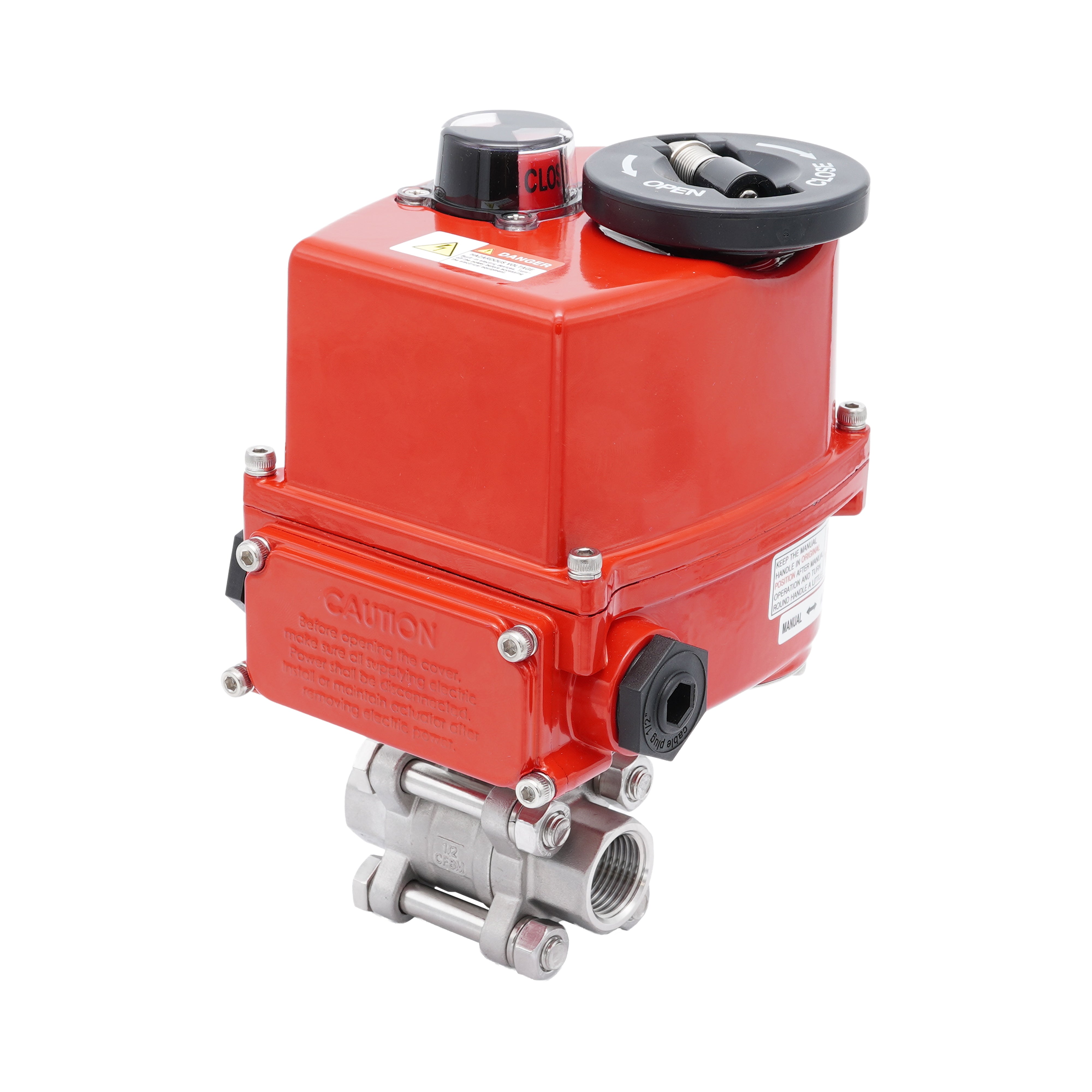

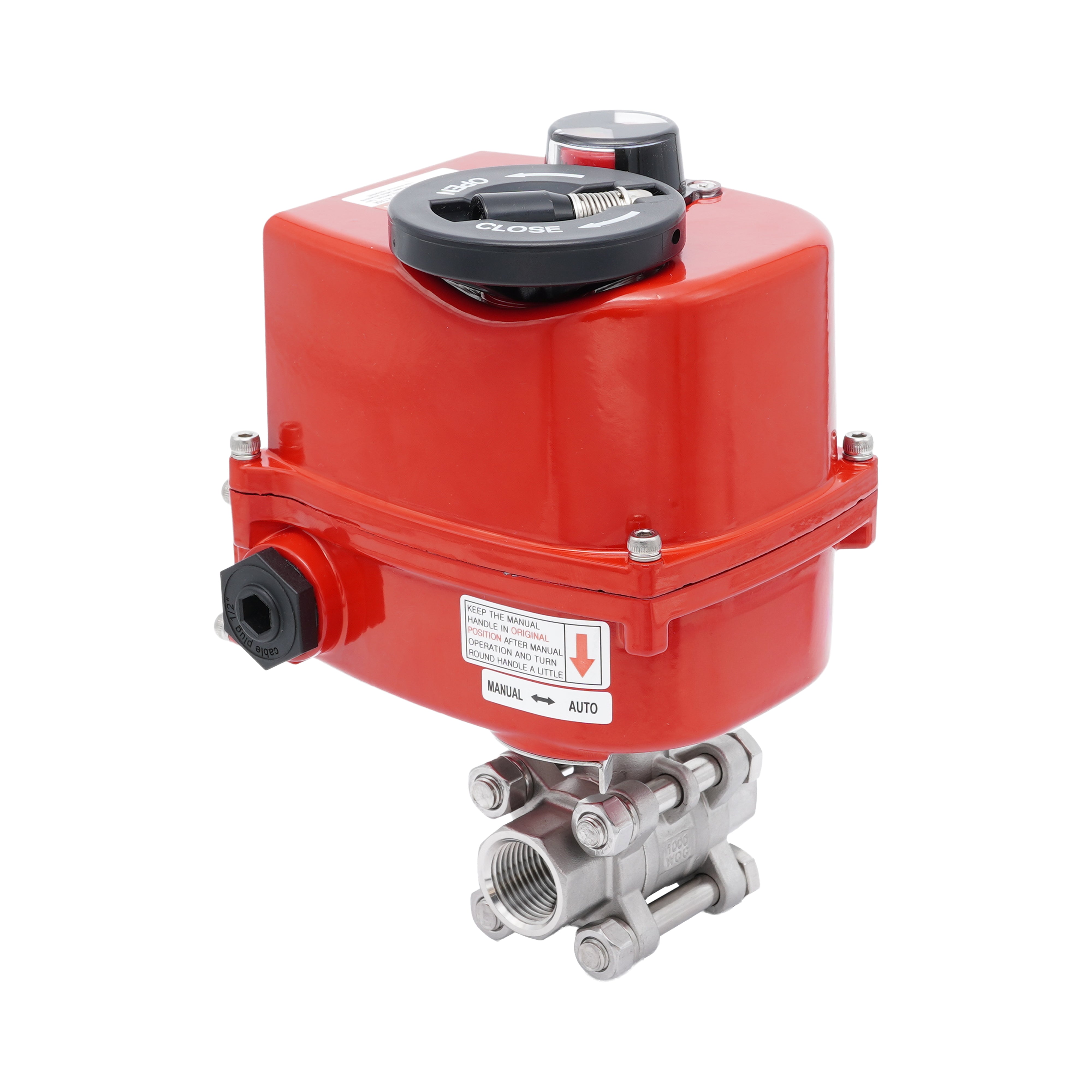

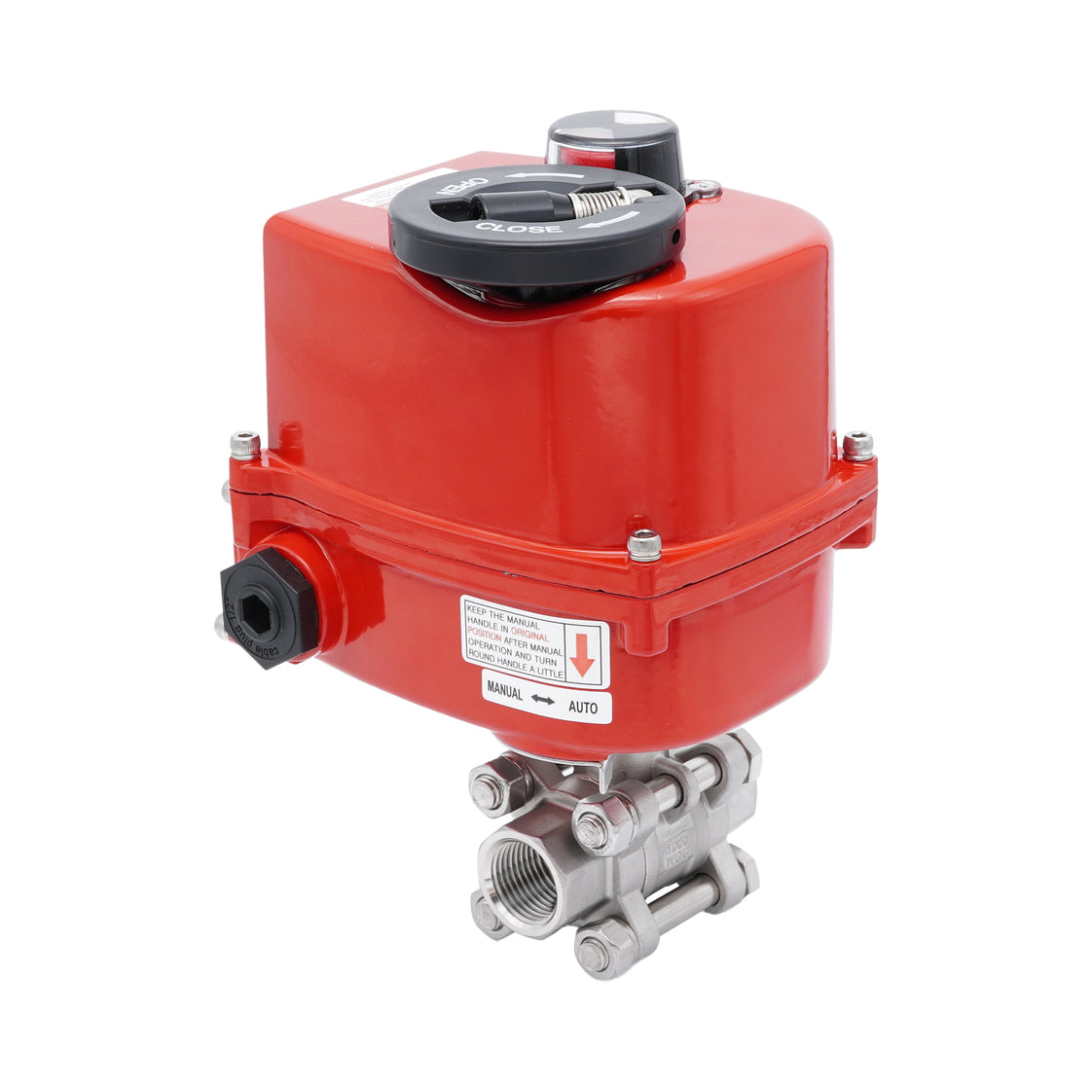

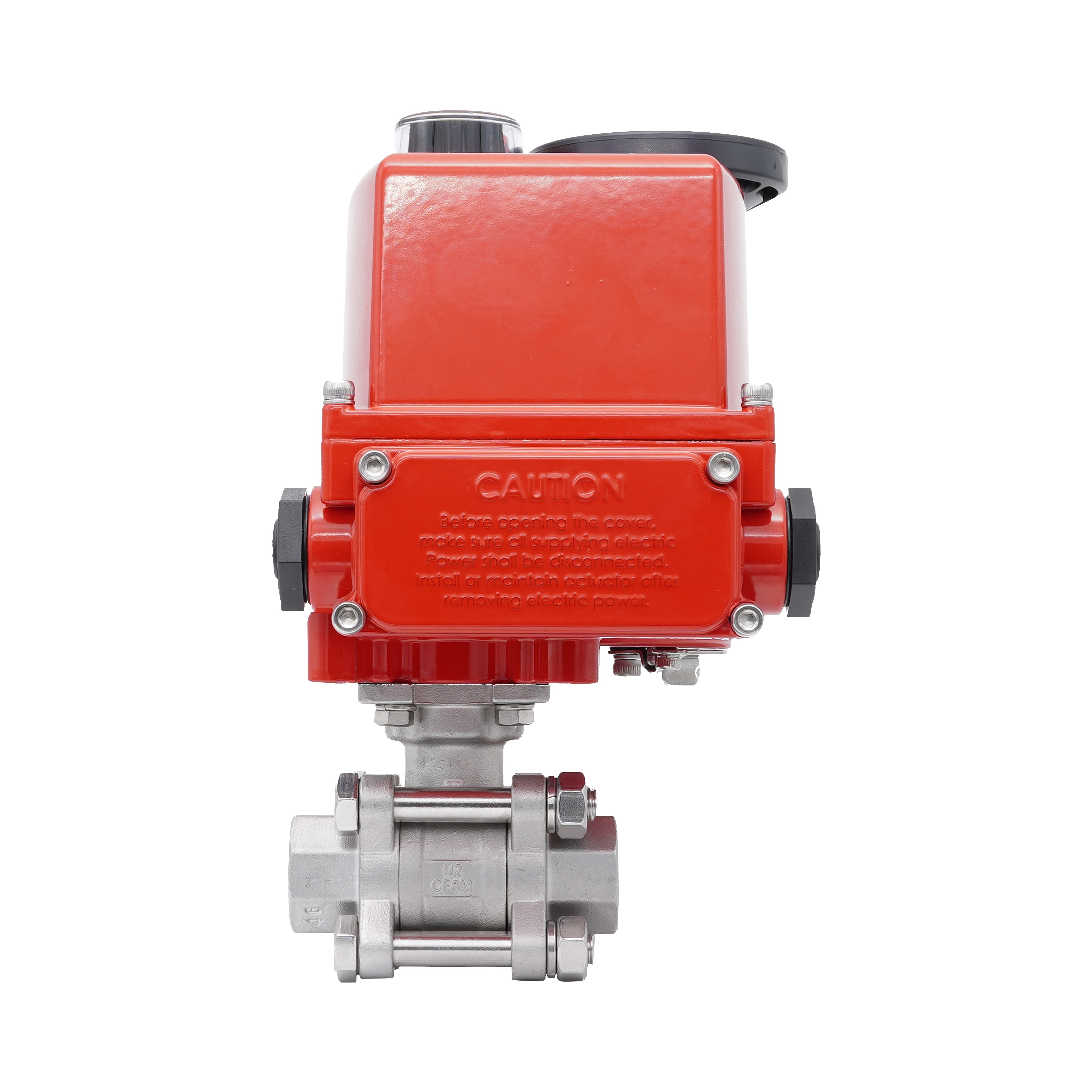

Rp 1-1/4'' 2-Way Stainless Steel Modulating Electric Ball Valve 24V AC/DC

This JP Fluid Control modulating electrical actuator is offered in combination with a TamesonPRO 2-way ball valve. It can turn the valve from 0-90 degrees with an operating torque of 40 Nm (higher break torque so please see the manual) in a time of 13 seconds. It requires a supply voltage of 24 V AC/DC, has a duty cycle of S2, and comes with a visual positioning indicator on top of the unit to clearly see valve position. As a modulating actuator, it is equipped with a digital positioning system (DPS) meaning it can position the valve anywhere between 0-90 degrees. It requires a control signal of 4-20 mA (and 0-10V, 2-10V) for positioning.

The stainless steel valve has two Rp 1-1/4'' female threaded ports (BSP 228-1). The valve has a 32 mm bore, with Kv value of 133 m³/h (Cv = 153.75 gpm). Kv expresses the flow rate of water in m³/h at a pressure drop of one bar. The valve is rated up to 69 bar at 20°C (1000 psi at 68°F). It is suitable for temperatures from -29°C up to 210°C (-20°F up to 410°F). The valve is suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media.It has a spindle seal material of RTFE. The ball valve has a 3-piece design allowing it to be taken apart and thoroughly cleaned. With the actuator`s durable aluminium housing, it gives the unit a protection of IP67 for an environment temperature of -10°C till 50°C (14°F till 122°F).

Before connecting the actuator, please read the manual carefully.

Pros:

• It is a modulating actuator with a digital positioning system (DPS) to position the valve anywhere between 0-90 degrees with a control signal of 4-20 mA
• It has a robust IP67 housing
• It has a clear visual indicator to see the valve`s position
• The ball valve has a 3-piece design allowing it to be taken apart and thoroughly cleaned

Cons:

• In comparison to a pneumatic actuator of the same size, the operating speed is slower

Applications

This valve can be used in combination with gases and fluids. The valve is durable and suitable for different aggressive and corrosive media. The maximum pressure at room temperature is 69 bar (1000 psi), at higher temperatures the maximum allowed temperature decreases. The temperature range of the medium lies between -29°C up to 210°C (-20°F up to 410°F). At high temperatures, it is recommended to install the valve in a ventilated area. It is allowed to install the valve in a humid environment provided that all parts, like an appropriate electrical cable, are correctly fixed. Ball valves can be used with light contaminated fluids. Some examples of applications for this valve are HVAC, irrigation, industrial automation, water management.

Electrical Wiring Diagram

The actuator features a 10-terminal wiring system split between essential power and optional feedback functions. For basic operation, Terminals 1, 2, and 3 provide a ground and a 24V AC/DC power supply with automatic voltage detection. Terminals 4 and 5 receive a modulating input signal, which is set to 4-20 mA by default but can be configured to 0-10V or 2-10V. For remote monitoring, Terminals 6 and 7 provide a continuous position feedback signal, typically 4-20 mA. External voltage must never be applied to these feedback pins to avoid permanent damage. Finally, Terminals 8, 9, and 10 use a common source to provide discrete "Open" or "Closed" status confirmations via limit switches.

Electrical wiring diagram of the AG-540-B-DPS actuator.

Assembly

Make sure that the position of the ball and the actuator are properly set before assembly. The actuator is provided with two adapters to connect the actuator to the valve shaft. Mount the actuator to the valve with the provided bolts. There should be no play between both flange. Use our fittings range for the connection between the pipe and the valve.

Note: This product is delivered in separate parts, but with the required mounting accessories.
